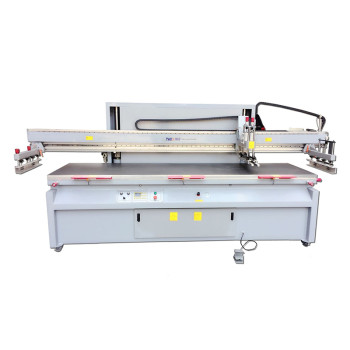

Large Size Automatic Screen Printing Machine for Yoga Mat Carpet
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-90180ST
payment methodT/T
-
update timeSat, 21 Sep 2024 15:29:13 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Printing size 900*1800mm
Table Size 1000*2000mm
Max Frame Size 1200*2400mm
Printing Thickness 50mm
Dimension 2650*1500*1740mm
Power AC380V / 5.7KW
Weight 680KG
Packging & Delivery
Weight680.00kg / set
Min Order1 set
Briefing
This semi-automatic flat screen printer is suitable for printing large-size products such as yoga mats and table mats.
Detailed
Introduction TX-90180ST Semi-automatic Flat Screen Printing Machine
Application:
This semi-automatic flat screen printer is suitable for printing large-size products such as yoga mats and table mats.
Features
★Main performance
1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
Specification
Model | TX-90180ST | |||||||
Table Size | 1000*2000mm | |||||||
Substrate Thickness | 50mm | |||||||
Max Printing Area | 900*1800mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 1200*2400mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/ 50HZ / 5.7 KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 2650*1500*1740mm | |||||||
Machine Weight | 680KG | |||||||
Machine image
Application
Yoga mat
Yoga mat
Sports anti-slip mat
