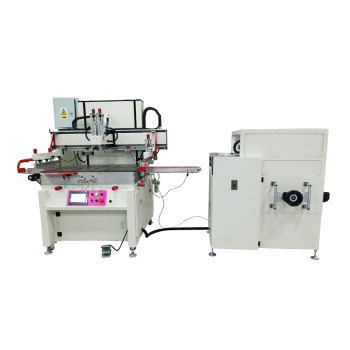

Automatic Loading and Positioning Screen Printing Machine TX-4060SF-A for Wood and Aluminum Plates
group nameAutomatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-4060SF-A
payment methodT/T
-
update timeFri, 08 Nov 2024 11:49:15 GMT
Paramtents
Model TX-4060SF-A
Max printing area 400*600mm
Table size 750*1000mm
Printing Speed 1000 pcs/h
Max screen frame 800*1200mm
Work-Piece Thickness ≤30mm
Power Supply AC380V/3.5KW
Machine Dimension 1520*1200*1740mm
Machine Weight 1000KG
Printing pressure 0.5-0.6Mpa
Packging & Delivery
Weight1000.00kg / set
Min Order1 set
Briefing
This automatic loading flat screen printer is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.
Detailed
Introduction
This automatic loading flat screen printing machine is suitable for high-precision positioning printing of wood boards, aluminum substrates, PCB circuit boards, home appliance glass, ABS, computer keyboards, plastic hardware, membrane switches, key nameplates and other products.
Main performance
1. Automatic feeding, automatic dust removal, and automatic positioning printing.
2. Adopting PLC control circuit and touch screen operation panel, it is sensitive to operation and has complete functions. The electrical and pneumatic components are all international brands, with stable product performance and reliable quality;
3. The vertical lifting is driven by variable frequency motor and controlled by inverter, with long life and stable operation;
4. The printing movement is driven by motor, variable frequency speed regulation, and the scraper can be switched freely;
5. The printing platform has high precision, scientific structure, small air resistance, strong vacuum suction force during operation, and the first printing platform adjustment mechanism to solve the problem of difficulty in adjusting the thickness of the substrate of similar models;
6. The first mechanical synchronous off-grid mechanism of similar models improves the printing suitability of the whole machine. Equipped with multiple protection systems to ensure safe operation.
Specification
Model | TX-4060SF-A | |||||||
Table Size | 750*1000mm | |||||||
Substrate Thickness | 0~30mm | |||||||
Max Printing Area | 400*600mm | |||||||
Min Printing Area | 250*300mm | |||||||
Printing speed | 1000pcs/h | |||||||
Max frame size | 800*1200mm | |||||||
Conveyor belt size | L2130*W 130mm | |||||||
Loader size | length 1080*width 1200*1300mm | |||||||
Loading bin size | length 800*width 600*lifting height 350mm | |||||||
Printing precision | ±0.03 ㎜ | |||||||
Power Consumption | AC380V/3.5KW | |||||||
Printing pressure | 0.5-0.6Mpa | |||||||
Machine Dimension | 1520*1200*1740mm | |||||||
Machine Weight | 1000KG | |||||||
Machine Details
Printing samples
Metal nameplate
Aluminum plate
Printed circuit board
