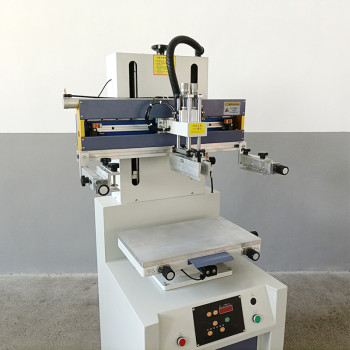

TX-3050V Vertical Pneumatic Flat Screen Printing Machine For Network Set-Top Box Logo

  • group nameSemi-Automatic Flat Screen Printing Machine

  • Min Order1 set

  • brand nameTAOXING Screen Printing Machines Manufacturer

  • modelTX-3050SV

  • payment methodT/T

  • update timeMon, 11 Nov 2024 07:29:08 GMT

Paramtents

  • Printing color 1 color

  • Operating mode semi-automatic

  • Printing speed 1000pcs/h

  • Maximum mesh frame size 600x1000mm

  • Printing size 300*500mm

  • Voltage / power 220V 380V/50HZ /2.1KW

  • Dimensions 1230x950x1580mm

  • Printing Thickness 25mm

  • Table size 500x700mm

  • Gross weight 495KG

  • Printing pressure 4.0~6.0 kfg/c㎡

Packging & Delivery

  • Weight230.00kg / set

  • Min Order1 set

Briefing

TX-3050V vertical flat screen printer is suitable for printing relatively high three-dimensional products such as cubic structure sheet metal chassis, square barrels, plastic/metal boxes, etc.

Detailed

Application
This ertical flat screen printer is suitable for printing relatively high three-dimensional products such as cubic structure sheet metal chassis, square barrels, plastic/metal boxes, etc.
Specifications
Model:  TX-3050SV
Printing area:  250*400mm
Platform size: 300*500mm
Printing thickness: ≤25mm
Printing accuracy: ±0.02mm
Maximum screen frame: 400*650mm
Printing pressure: 0.5-0.7Mpa
Power supply: 220V/50HZ/50W
Maximum printing speed: 1000pcs/h
Gross weight: 230(KG)
Machine size: 790*640*1550mm
Packing size: 850*650*1600mm
Features
①Stable and reliable microcomputer control
②High-quality sensors
③Convenient and simple foot switch control
④International brand pneumatic components
⑤Advanced air filter
⑥Sturdy parts
⑦Wear-resistant imported shaft sleeves
⑧Independent printing and ink return speed control
⑨Simple operation and easy maintenance
