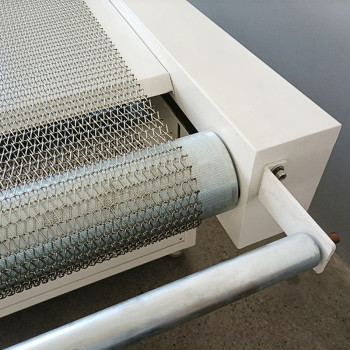

TAOXING Flat Flame Treatment Machine TX-HY800P For Flat Plastic Parts Printing Preprocessing
group namePrepress Processing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-HY800P
payment methodT/T
-
update timeTue, 05 Nov 2024 02:20:45 GMT
Paramtents
Type Flame Treatment Machine
Rated voltage / light power 220V/50Hz
Conveyor belt size Width 800*Length 2000mm
Combustion gas 8KGf / cm²
Speed regulation mode Electronic stepless speed regulation
Conveyor belt speed 0-10m/min
Dimension 2140 * 120 * 840mm
Flame width / height 800mm / 260mm
Packging & Delivery
Size220cm x 120cm x 90cm
Min Order1 set
Briefing
The working principle of the flat flame treatment machine is to use the flame plasma generated by the combustion of a specific gas-air mixture to activate the surface of plastics, glass and metals, so that inks, coatings, adhesives, etc. can better adhere to these materials.
Detailed
Introduction
The working principle of the flat flame treatment machine is to use the flame plasma generated by the combustion of a specific gas-air mixture to activate the surface of plastics, glass and metals, so that inks, coatings, adhesives, etc. can better adhere to these materials.
This flat flame treatment machine is mainly used for pre-printing treatment of plastic and metal molded parts, glass, and thin plates , and is suitable for a variety of industrial applications . Through flame treatment, the chemical properties of the material surface can be improved, and the quality of subsequent processing can be improved. The design of this equipment usually includes removable pneumatic and electrical housings, as well as a lightweight burner equipped with a piezoelectric igniter, which is easy to operate and flexible to use .
Specification
Main Parameters
Model： TX-HY800P
Flame width /height： 800mm/260mm
External combustion gas： Standard LPG
Combustion-supporting gas 8KGf / cm²
power supply： 220V/50Hz
Conveyor belt size： Width 800*Length 2000mm
Speed regulation mode： Electronic stepless speed regulation
Dimensions： 2140 * 120 * 840mm
Appearance pictures
