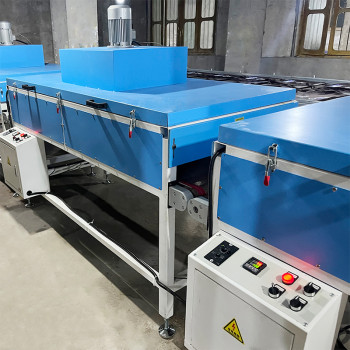

Paper Bag Plastic Bag Servo Flat Screen Printing Machine TX-5060SS with Conveyor Belt
group nameAutomatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-5060SS / 5080SS
payment methodWestern Union, T/T
-
update timeSat, 21 Sep 2024 20:55:21 GMT
Paramtents
Maximum printing 500 * 600mm / 500* 800mm
Printing thickness ≤ 50 mm
Printing pressure 5 ～ 7bar
Mainframe length * conveyor belt width 2000*730mm / 2600*730mm
Voltage / Power 220V or 380V 1.15KW/1.75KW
Maximum screen frame 700*900mm / 700*1100mm
Maximum number of prints 1500 pcs/h
Adsorption effect Optional
Drying section power 6KW/section
Packging & Delivery
Min Order1 set
Briefing
This conveyor-type flat screen printer is suitable for single-color screen printing of various flat products such as paper , non-woven bags, cardboard fabrics, etc.
Detailed
Introduction Conveyor type flat screen printing machine
Application : This conveyor-type flat screen printer is suitable for single-color screen printing of various flat products such as paper , non-woven bags, cardboard fabrics, etc.
Main performance
①Use imported brand PLC programming control and touch screen human-machine control.
②The printing motor is controlled by Xinjie servo motor, which runs smoothly and efficiently.
③The belt conveyor uses Xinjie servo motor to control the stroke, and the start and stop positions are accurate and smooth.
④Pneumatic lifting of mesh plate, pneumatic components of well-known brands .
⑤ Compressed air filtration device to purify the air intake source of the equipment and increase the service life of pneumatic components.
⑥Independent printing and ink return speed control , touch screen digital visualization control.
⑦The touch screen has a counting function , and the production capacity reminder alarm can be set according to the printing quantity
⑧ Single knife printing or ink return printing mode can be selected according to the product.
⑨ Printing can use ink, water slurry , glue, etc. as materials for printing patterns .
Specification
|
Model
|
TX-5060SS
|
TX-5080SS
|
|
Printing thickness
|
≤50mm
|
≤50mm
|
|
Max printing size
|
500*600mm
|
500*800mm
|
|
Pressure
|
5～7bar |
5～7bar |
|
screen printer’s length
* belt width |
2000*730mm
|
2600*730mm
|
Voltage/power | 220V or 380V
1.15KW | 220V or 380V
1.75KW |
Max frame size | 700*900mm | 700*1100mm |
Max printing speed | 1500pcs/h | 1500pcs/h |
Drying section size | Each section is 2 meters (heating area is 1 meter) | |
Drying section power | 6KW/section | |
Details image
Printing sample
