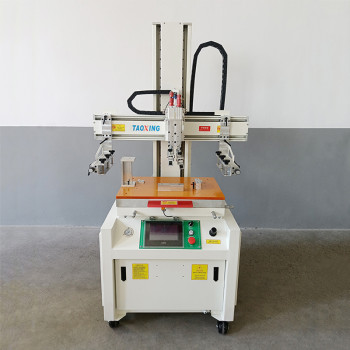

Heightened Servo Flat Screen Printing Machine TX-3050SF-T for Metal Chassis
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-3050SF-T
payment methodT/T
-
update timeFri, 01 Nov 2024 13:28:28 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Maximum mesh frame size 400*650mm
Printing size 250*400mm
Voltage / power 220V/2.1KW
Dimensions 900*600*1850mm
Printing Thickness 25mm
Gross weight 250(KG)
Packging & Delivery
Weight250.00kg / set
Min Order1 set
Briefing
It is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.
Detailed
Application
This servo flat screen printing machine is suitable for logo and logo printing on heightened metal chassis and plastic storage boxes.
Specifications
|
Model: TX-3050SF-T
|
Printing area: 250*400mm
|
Platform size: 300*500mm
|
|
|
Printing thickness: ≤25mm
|
Printing accuracy: ±0.02mm
|
Maximum screen frame: 400*650mm
|
|
|
Printing pressure: 0.5-0.7Mpa
|
Power supply: 220V/2.0KW
|
Maximum number of idling prints: 1000 (PCS/H)
|
|
|
Gross weight: 250(KG)
|
Machine size: 900*600*1650mm
|
Packing size: 850*650*1800mm |
|
Features
① Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.
② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.
③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.
④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.
⑤Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.
⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.
⑦With a thimble cylinder, with the manipulator to take material.

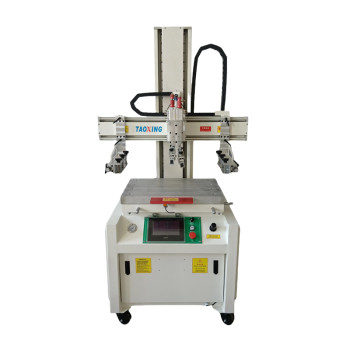

Machine Details Display
Printing samples
