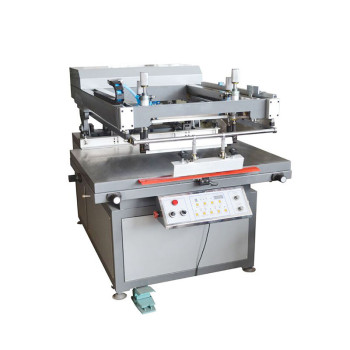

Semi Automatic Oblique Robotic Arm UV Spot Flat Screen Printing Machine TX-XB7010 for Paper Box
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-XB7010
payment methodT/T
-
update timeFri, 01 Nov 2024 11:37:59 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000 pcs/h
Printing size 700*1000mm
Max Frame Size 1000*1400mm
Table size 800*1100mm
Power 2.2KW/220V
Air Pressure 0.5-0.6Mpa
Outside Dimension 1900×1450×1400mm
Weight 500KG
Printing Thickness ≤30mm
Packging & Delivery
Weight500.00kg / set
Min Order1 set
Briefing
This TX-7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
Detailed
Introduction of Oblique Arm Flat Screen Printing Machine
Application:
This TX-XB7010 oblique arm flat screen printing machine is widely used in the packaging industry, such as cigarettes box, wine box, gift box, Also it is good to printing for the trademark, nameplate, ceramic decal, non-woven bag and so on.
Features
1).Oblique arm structure. Independent drive of printing arm.
2).Vacuum stainless steel printing table and powerful vacuum pump.
3).Micro registration handle in horizontal and vertical direction make more precision and convenient color register.
4).Variable frequency drive system drives the printing head, respectively digital control of printing and ink reclaiming speed.
Specification of Oblique Arm Flat Screen Printing Machine
Model | TX-XB70100 | |||||||
Table Size | 800x1100mm | |||||||
Printing Thickness | 30 mm | |||||||
Max Printing Area | 700×1000mm | |||||||
Printing speed | 600 pcs/hour | |||||||
Maximum screen frame size | 1000*1400mm | |||||||
Maximum print Length: | 1000mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 220V/50HZ /2.1KW | |||||||
Printing pressure | 0.5-0.6Mpa | |||||||
Machine Dimension | 1900×1450×1400mm | |||||||
Machine Weight | 500KG | |||||||
Application of Oblique Arm Flat Screen Printing Machine
