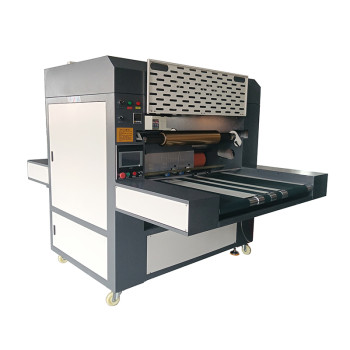

Screen printing UV hot stamping production line Foil Saving Hot Stamping Machine Screen Printing Hot Stamping
group nameAutomatic Hot Stamping Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-UV1160-190
payment methodWestern Union, T/T
-
update timeFri, 01 Nov 2024 21:42:03 GMT
Paramtents
Maximum stamping width 66CM
Hot stamping speed 0~15m/min
Stamping temperature 60~140℃
Total power 6KW
Air pressure 0~8 Mpa
Power supply 380V/50HZ
Total weight 420KG
External dimensions 200*120*128cm
Packging & Delivery
Min Order1 set
Briefing
This fully automatic cold foil machine is suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
Detailed

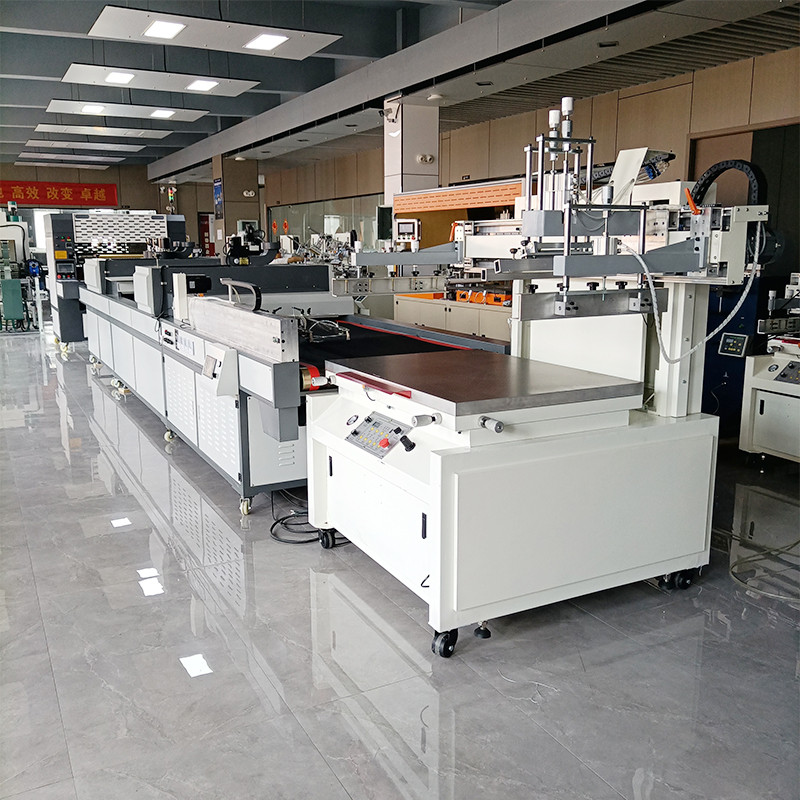

Introduction Screen printing UV hot stamping production line
Suitable for UV silk screen printing , hot stamping , cold stamping, etc. of various flat material products such as PVC, PU, PP, PET, PC matte acrylic, leather aluminum sheets, metal sheets, etc. , and hot stamping with 3D stereoscopic effect.
Main performance characteristics
1. Widely used in ordinary aluminum foil and special cold stamping aluminum foil;
2. The equipment uses a fully automatic servo motor step-skipping function to save aluminum foil materials;
3. The hot stamping pattern can be hot stamped multiple times and set to hot stamp continuously;
4. Can be connected to various semi-automatic and fully automatic screen printing machine production lines;
5. Cold stamping speed: 0-2000 sheets per hour;
6. This cold stamping machine relies on the printing screen hot stamping varnish to be completely cured before heating, and hot stamping does not require secondary UV curing;
7. It can also be used as a partial UV laser embossing transfer film.
Specification
Product name:
Semi-automatic flat screen printing machine
Machine Model: TX - 70100ST
Printing thickness: ≤ 50 mm
Printing size: 700*1000 mm
Printing pressure: 4.0～6.0kfg/ c㎡
Platform size: 800*1100 mm
Voltage/Power: 380V/50HZ /4.5KW
Maximum screen frame: 1000*1 40 0mm
Machine size: 1760*1350*1750mm
Printing speed: 800 pcs/h
Gross Weight: 950 (KG)
Product name:
Fully automatic servo step-by-step cold stamping machine
Machine Model: TX-UV1160-190
Usage: UV screen printing hot stamping
Hot stamping wide： ≤1050mm
Hot stamping speed： 0-15m/min
Hot stamping temperature： 60-140℃
Total Power： 8KW
Pressure: 0-8Mpa
Power supply" 380V/50Hz
Total weight: 750Kg
Dimensions: 2300X1660X1750mm
Product name:
UV multifunctional curing machine
Machine Model： TX-UV1070
Belt width： 1000mm
UV lamp power ：8.0KW*4pcs
Overall length： 7000mm
Power： 380V/12.8KW
Conveyor belt speed： 0-25m/min
Outer diameter： 130*145cm
Machine weight： 400KG
Details image
Printing sample
