Taoxing Semi-Automatic Flat Screen Printing Machine TX-4060ST-T For Electric Meter Box
group nameSemi-Automatic Flat Screen Printing Machine
-
Min Order1 set
brand nameTAOXING Screen Printing Machines Manufacturer
modelTX-4060ST-T
payment methodT/T
-
update timeFri, 08 Nov 2024 03:05:07 GMT
Paramtents
Printing color 1 color
Operating mode semi-automatic
Printing speed 1000pcs/h
Maximum mesh frame size 700x1050mm
Printing size 400*600mm
Printing Thickness ≤100mm
Printing pressure 4.0~6.0 kfg/c㎡
Voltage/power 380V/50HZ /2.1KW
Dimension 1230x950x1580mm
Printing type Automtic Screen Printing Machine
Weight 495 KG
Packging & Delivery
Weight495.00kg / set
Min Order1 set
Briefing
The electric T-slot flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.
Detailed
Introduction TX-4060ST Electric Meter Box Screen Printing Machine
Application:
The electric meter box flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.
Features:
① Vertical structure, the vertical lifting and lowering of the screen is electric, and the left and right movements of the printing head are driven by variable frequency electric drives.
② SCM control circuit, independent driving source for printing and screen lift.
③ Pneumatically control the lifting and lowering of the printing knife frame, and the photoelectric eye controls the stroke, which can be adjusted independently.
④ Manual/semi-automatic/full-automatic three modes are set, and the printing indirect time is digitally controlled.
⑤ Independently designed machine head lifting device, squeegee/return knife, screen loading and unloading and screen cleaning are convenient.
⑥ Double guide column left and right mesh clamp arms, and at the same time, the plate distance adjustment device is installed, which is easy to adjust.
Specification
Model | TX-4060ST-T | |||||||
Table Size | 500*700mm | |||||||
Substrate Thickness | ≤100mm | |||||||
Max Printing Area | 400×600mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 700*1050mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ /2.1KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 1260*910*1650mm | |||||||
Machine Weight | 495KG | |||||||

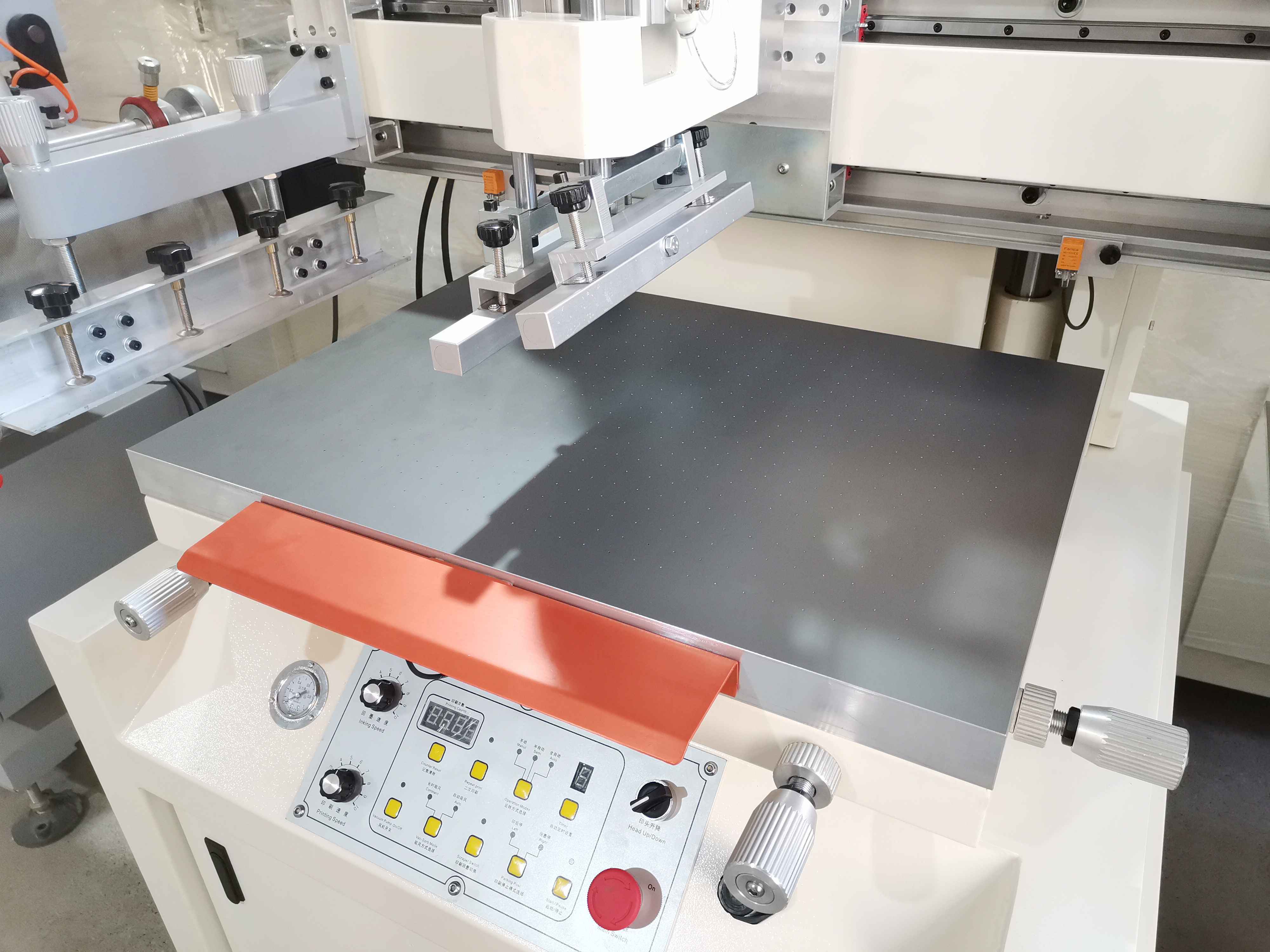

Machine image
Printing samples
