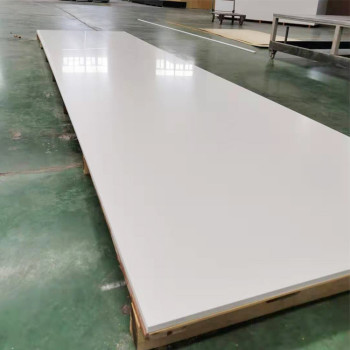

12mm 15mm 18mm PVC Plastic Construction Shuttering Board High Performance Competitive Price

group namePVC Concrete Formwork
Min Order100 sheet
brand nameBoardway Plastic Sheet PVC Foam Board Manufacturer
payment methodL/C, D/P, Western Union, MoneyGram, T/T, Paypal, Trade Assurance
update timeThu, 14 Nov 2024 15:04:52 GMT

contact supplier

Paramtents

Material PVC (Polyvinyl Chloride)
Custom specifications Length, width, thickness, density
Processing services Cut to size, cnc engraving, bending
Supporting services Sourcing, construction technical guidance
Packing method Plywood pallet, metal pallet
Transportation mode FCL/LCL by sea, air, road and rail

Packging & Delivery

Min Order100 sheet

Briefing

Our PVC formwork is weather-resistant and cost-efficient, making it an ideal choice for durable and affordable construction projects.

Detailed

PVC FORMWORK

PVC formwork is a premium construction material crafted from durable, environmentally friendly PVC. Engineered to endure tough conditions, it provides exceptional resistance to moisture, corrosion, and wear, making it a superior choice compared to traditional plywood or metal formwork. Known for its high reusability, PVC formwork offers both cost savings and environmental benefits over multiple construction cycles. Its lightweight design makes handling and installation easier, helping to lower labor costs and accelerate the assembly process for residential, commercial, and industrial projects.

Features

Waterproof
Weather Resistance
High Impact Resistance
Strong Workability
Cost Efficiency

Specification

Size

915x1830mm, 1220x2440mm, 1220x3000mm, size can be customized

Thickness

12mm, 15mm, 16mm, 18mm

Density

0.65, 0.7, 0.75, 0.8 g/cm3

Surface

Smooth

Customizable Options

Available upon request to accommodate specific project requirements

Shape Types

Flat PVC Formwork

Our Flat PVC Formwork is designed for creating smooth, flat concrete surfaces. It is ideal for a wide range of construction projects, offering a reliable and durable solution. The flat design ensures uniformity and precision in concrete casting, making it a preferred choice for many builders and contractors.

Curved PVC Formwork

Our Curved PVC Formwork is specifically designed for projects that require curved concrete surfaces. It offers flexibility and strength, allowing for the creation of smooth and precise curves in concrete structures. This formwork is perfect for architectural features, bridges, tunnels, and any construction where curved surfaces are essential.

PVC VS Plywood Formwork

We carried out a hands-on comparison between plywood and PVC formwork at our construction site to evaluate their performance under the same conditions. The two images below show both formwork types in use within the same building section, offering a direct side-by-side comparison. Each type of formwork has been reused six times, providing us with insights into their durability, ease of handling, and the quality of concrete finishes after multiple uses.

Formwork Performance	PVC Concrete Formwork	Plywood Formwork
Hardness	70 - 75 Shore D	Less than 30 Shore D
Flatness	Flat overall, slightly bent	The bending height is close to 2 cm
Surface	No damage on the surface, with small dent	The surface is damaged, especially near the edge
Corners	Intact and undamaged	The corners are cracked, not right angles
Expansive Deformation	No expansion	Expand and separated layer
Service life	Can continue to be used	Out of use

The concrete surfaces shown below were demoulded from two different formworks. The concrete cast using PVC formwork exhibits a noticeably superior finish. The following images provide a comparison of the two surfaces: on the left is the concrete formed with PVC formwork, and on the right is the concrete formed with plywood formwork.

Concrete Appearance	PVC Concrete Formwork	Plywood Formwork
Concrete Color	The color of concrete can be uniform and beautiful without a mold release agent	A release agent must be used, otherwise the color of the concrete cannot be uniform
Wall	Overall clean and smooth	Rough with dirt and scratch, and uneven concrete
Ceiling	Tight joints, with only a little concrete overflow	There is excess concrete in the joints, need to be removed manually
Beam	Overall clean and smooth	Rough with dirt and scratch, and uneven concrete, especially at the junction
Pillar	Overall clean and smooth	The concrete at the junction is uneven, with concrete overflow or insufficient

Technical Data Sheet

Testing sample: PVC concrete formwork, 18mm thick

Test Item	Method	Unit	Result
Density	ASTM D792	g/cm3	0.73
Hardness	ASTM D2240	Shore D	75
Water Absorption	ASTM D570	%	1.5
Flexural Strength	ASTM D790	MPa	26
Flexural Modulus	ASTM D790	MPa	1000
Tensile Strength at Yield	ASTM D638	MPa	30
Tensile Modulus	ASTM D638	MPa	1200
Elongation at Break	ASTM D638	%	15
Modulus of Elasticity	ASTM C1548-2	MPa	1600
Charpy Impact Resistance	ASTM D6110	KJ/m2	36
