Air-blown Micro cable GCYFY12~ 144 Fiber

group nameCustomized Fiber Optic Cable
Min Order1 kilometer
brand nameRUX
modelGCYFY12~ 144
payment methodL/C, Western Union, MoneyGram, T/T
update timeTue, 05 Nov 2024 11:44:38 GMT

contact supplier

Paramtents

Brand Name RUX
Place of Origin Guangdong, China (Mainland)
Fiber Type SM G657A/G652D
Loose tube material PBT
Strength Member FRP
Fiber Count 2-144 cores
Outer Sheath Black Polythene (PE) Jacket
Temperature range -40°~60°C
Delivery Time 10-15 days
Package 2 km/ spool

Packging & Delivery

Min Order1 kilometer

Briefing

It covers the design and performance of the single mode optical cables to be used in air blown micro duct application.

Detailed

1.1 Cable Description（Air-blown Micro cable）

12/24/36/48//72/96/144 G.657A2SM-fibers.

Loose tubes SZ-stranded.

Suitable for air blown cable in micro-ductinstallation.

1.2 Reference

ITU-T G.657A2	Characteristics of a single-mode optical fiber
IEC 60794-1-1	Optical fiber cables- part1-1-Generic specification-General
IEC 60794-1-2	Optical fiber cables- part1-2-Generic specification-Basic optical cable test procedure
IEC 60794-3	Optical fiber cables- part3-Sectional specification- Outdoor cables
IEC 60794-5	Optical fiber cables- part5-Sectional specification- Microduct cabling for installation by blowing

1.3 Working Condition

Transportation and storage temperature:-40℃～+70℃

Installation temperature: -15℃～+60℃

Operation temperature: -20℃～+70℃

1.4 Minimum Allowable Bending Radius

Static: 10D

Dynamic: 20D

D is the out diameter of the cable

2. Optical Fiber In Cable(ITU-G657A2)

Optical properties of the SM fiber areachieved through a germanium doped silica based core with a pure silicacladding which meets ITU-T G657A2, UV curable acrylate protective coating isapplied over the glass cladding to provide the necessary maximum fiberlifetime.

Geometrical, optical, and mechanicalcharacteristics of fiber in cable as the following table:

Category	Description	Specification
		Before cable	After cable
Geometrical Characteristics	Cladding diameter	125.0 ± 1 mm
	Cladding non-circularity	≤1.0 %
	Core concentricity error	≤ 0.6mm
	Coating diameter	245± 10 mm(Before Colored) 250 ± 15 mm (Colored)
	Coating/cladding concentricity error	≤ 12mm
Optical Characteristics	Mode field diameter at 1310 nm	9.2 ± 0.4 mm
	Point discontinuity	≤ 0.05dB
	Attenuation at 1310 nm	≤ 0.34 dB/km	≤ 0.35 dB/km
	Attenuation at 1383 nm	≤ 0.34 dB/km	≤ 0.35 dB/km
	Attenuation at 1550 nm	≤ 0.21 dB/km	≤ 0.22dB/km
	Attenuation at 1625 nm	≤ 0.23 dB/km	≤ 0.24dB/km
	Dispersion in 1288 – 1339 nm	≤ 3.5 ps/(nm·km)
	Dispersion in 1271 – 1360 nm	≤ 5.3 ps/(nm·km)
	Dispersion at 1550 nm	≤ 18 ps/(nm·km)
	Zero dispersion wavelength	1300 – 1324 nm
	Zero dispersion slope	≤ 0.092 ps/(nm2·km)
	Cable cut-off wavelength	≤ 1260 nm
	Polarization mode dispersion individual fiber	≤ 0.2 ps/Ökm
	Polarization mode dispersion design link value (M=20, Q=0.01%)	≤ 0.1 ps/Ökm
	Macro-bend loss (100 turns, 30mm radius, 1550/1625nm)	≤ 0.1 dB
Mechanical Specification	Proof stress level	≥100kpsi (0.69 GPa)
	Coating strip force(peak value)	1.3~8.9N
	Fiber curl (Radius)	≥4 m

3. OpticCable

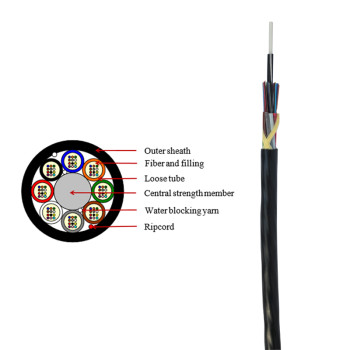

3.1 General Design

Optical fibers are housed in loose tubes that are made ofhigh-modulus plastic and filled with waterproof compounds.

FRP is applied as central strength member.

Loose tubes are SZ-stranded around the strength member.

Water blocking yarns are used in and over the cable core toprevent it from water ingress. Polyethylene sheath is applied over the cablecore as the outer sheath.

3.2 Construction

3.2.1 Dimensions and Descriptions of Cable Constructions

Item	contents	Value
Item	contents	12	24	36	48	72	96	144
Loose tube	Number	1	2	3	4	6	8	12
Loose tube	Outer diameter (mm)	1.5
Filler	Number	5	4	3	2	0	0	0

3.2.2 Mechanical Performance of Cable

Tensile performance(N)		Crush(N/100mm)
Short term	Long term	Short term	Long term
0.5*G	0.15*G	450	150

3.3 Mechanical, Electrical andEnvironmental Test Characteristics

The finished cables can be subjectedto the following mechanical, electrical and environmental conditions.

Item	Test Method	Requirements
Tensile	IEC 60794-1-2-E1	The maximum increase in attenuation less
performance	Load: according to short term tensile described in 3.2.3 Cable length under tension: Not less than 50m. Duration of load sustain: 1min. Velocity of transfer device: 10mm/min	than 0.1dB. The maximum fiber strain less than 0.3% under maximum tensile short term load. No change in attenuation after test at 1550nm. Under visual examination without magnification, no damage to the sheath or to the cable elements after test.
Crush	IEC 60794-1-2-E3 Load: 450N Duration of load: 1min	No change in attenuation after test at 1550nm. Under visual examination without magnification, no damage to the sheath or to the cable elements. The imprint of the striking surface on the sheath is not considered mechanical damage.
Bend	IEC 60794-1-2-E11A diameter Turns:10 Cycles:5	No change in attenuation at 1550nm after test. Under visual examination without magnification, no damage to the sheath or to the cable elements.
Repeated bending	IEC 60794-1-2-E6 Bending radius: 20 times cable diameter Cycles: 25 Load: 25N Duration of cycle: Approximately 2s.	No change in attenuation at 1550nm after test. Under visual examination without magnification, no damage to the sheath or to the cable elements.
Torsion	IEC 60794-1-2-E7 Cycles:5 Length under test: 1m Turns: ±180° Load: 40N	The variation on attenuation for each fiber less than 0.05dB at 1550nm Under visual examination without magnification, no damage to the sheath or to the cable elements. No permanent change in attenuation after test
Temperature cycling	IEC 60794-1-2-F1 Sample length: at least 1000m Temperature range: -20℃~+70℃ Cycles: 2 Temperature cycling test dwell time: 12 hours	There is no change in attenuation coefficient at 1550nm after the test.
Water Penetration	IEC 60794-1-2-F5B Time : 24 hours Sample length : 3m Water height : 1m	No water leakage
Compound flow	IEC 60794-1-2-E14 Sample count:5 Sample length:300 ±5 mm, Remove length: 130 ±2,5 mm, Time:24h	No filling compound dripped.
Other parameters	According to IEC 60794 ,YD/T 1460.4-2006
