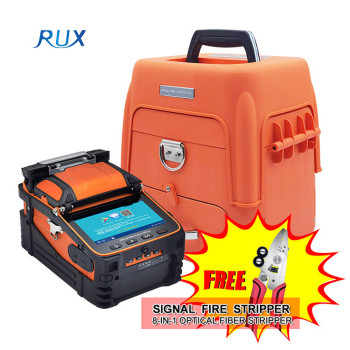

Fusion Splicer AI-9 Ftth Optical Fiber Fusion Splicer Machine
group nameFiber Optic Fusion Splicer
-
Min Order1 piece
brand nameRUX
modelAI-9
payment methodL/C, Western Union, MoneyGram, T/T, Paypal
-
update timeFri, 08 Nov 2024 07:42:12 GMT
Paramtents
Dimension 135W*198L*122H
Weight 2.1 KG (with battery)
Fiber alignment Core/cladding
Motor number 6 motors
Splicing Time 5s
Packging & Delivery
Min Order1 piece
Briefing
Fusion Splicer AI-9 Ftth Optical Fiber Fusion Splicer Machine
Detailed
Description
Fusion Splicer AI-9 Ftth Optical Fiber Fusion Splicer Machine
Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
Technical Data
|
ITEM
|
Technical Parameters
|
Fiber alignment | Core/cladding |
Motor number | 6 motors |
Splicing time | 5s |
Heating mode | 15s,can be customized according to the external environment |
Fiber type | Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber , drop cable, jumper fiber, drop cable |
The cladding diameter | 80-150 μm |
Splicing loss | 0.02dB (SM) 、0.01dB (MM) 0.04dB (DS/NZDS) |
|
Splicing mode
|
Automatic focusing core alignment, conventional/high precision welding
|
Splicing way | Automatic, semi-automatic |
Fiber holder | Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper, leather cable |
Battery capacity | 7800mAh large capacity lithium battery charging time ≤3.5 hours; lt can continuously weld and heat about 260 cores |
Magnification | 300 (X or Y),150 (X or Y) |
Fiber diameter | Coating diameter: 80-150μm/Coating diameter: 100-1000μm |
Cutting length | Coating layer 250μm below. 8-16mm/coating layer 250-1000μm: 16mm |
Heat shrink tube | 60mm、50mm、40mm、25mm |
Tensile testing | standard 2N |
display | 5 inch TFT color display screen |
Extemal lighting | USB port can be connected with EXTERNAL LED light, convenient for night construction |
Products Features
* Signal fire Suitable for about 100KM of trunk cable welding project
* Six motors Core alignment* 15s automatic heating
* 5 seconds fast splicing
* 5 inch display Simultaneously align fibers Loss display
* Within VFL and OPM function
Application
* FTTX, FTTH, CATV projects, Trunk Line Construction
