group namePatch cord/ pigtail
Min Order10 piece
brand nameRUX
modelHybrid Fiber and Power Patch Cord
payment methodL/C, Western Union, MoneyGram, T/T, Paypal
update timeFri, 18 Oct 2024 13:42:20 GMT
Fiber Type G657A2
Jacket Material LSZH
Installation Temperature -10~+65
Operating Temperature -40~+75
Connector 1 LC/UPC uniboot with pull rod
Connector 2 LC/UPC
Min Order10 piece

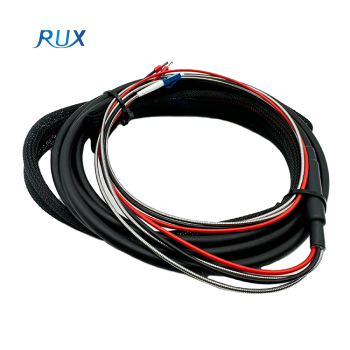

This hybrid cable assembly is used to connect both fiber and power to a radio element. This cable is specifically design to work with many popular radio models that are powered by 48vdc and have fiber interfaces.
This type of hybrid cable cuts down on installation time and reduces opportunity for installer error.
This hybrid cable is part of the Specialized hybrid power and fiber system that includes a hybrid trunk cable, a distribution enclosure and these hybrid jumper cables.
Both ends of the electrical conductors are terminated with a flat ferrule that makes it very easy to connect the DC terminal while installing in the field.
For the fiber connectors, one side of the cable has a ruggedized uniboot duplex LC connector that is specifically designed to be installed within a cable gland protector on the radio element. The other side of the cable has a more flexible but armored tail that has a standard duplex LC connector that can be separate should the installer need to roll polarities.
ITEM
|
Technical Parameters
|
Fiber Type | G657A2 |
Mode field diameter at 1310um | 8.6~9.5±0.4 μm |
Cladding diameter | 125.0±0.7 μm |
Core concentricity error | ≤0.5 μm |
Cladding non-circularity | ≤1.0 % |
Zero dispersion wavelength | 1300nm ~ 1324nm |
Zero dispersion slope | ≤0.092 ps/(nm²·km) |
Cable cut-off wavelength | ≤1260 nm |
Proof stress
|
≥0.69 Gpa
|
Polarization mode dispersion | ≤0.2 ps/km |
