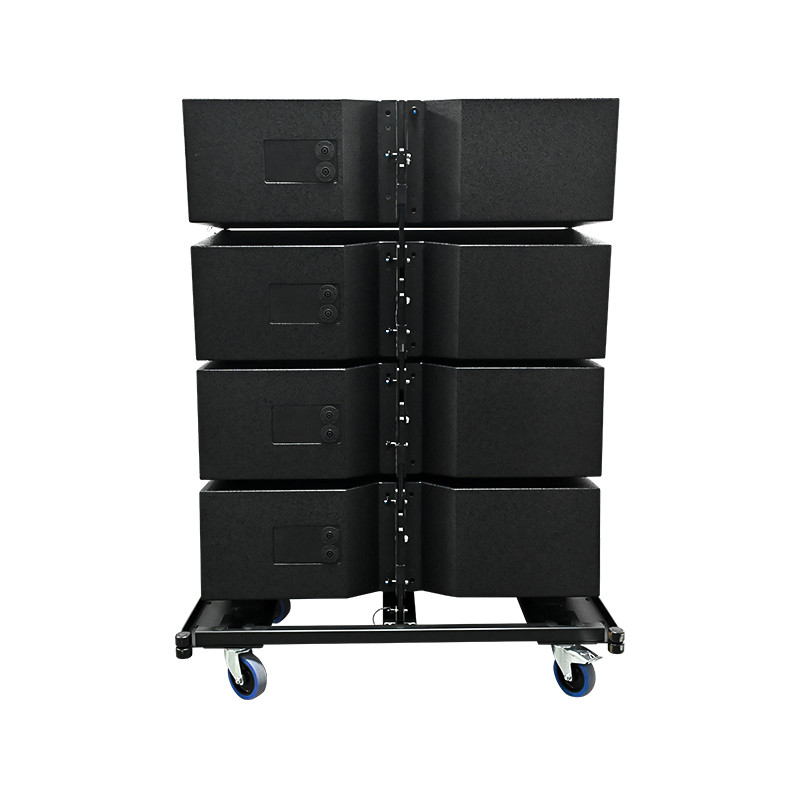

WL12 Double 12 inch Bi-amp Line Array Passive Speaker

  • group nameLINE ARRAY SPEAKER

  • Min Order1 piece

  • brand nameSinbosen| Audio sound system manufacturer

  • modelWL12

  • payment methodT/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

  • update timeFri, 08 Nov 2024 13:56:26 GMT

Paramtents

  • Type Passive

  • Drivers LF 2 x 12 ; MF 2 x 6.5"; HF 3 x 1”

  • Impedance 8 ohms

  • Frequency Response 52Hz-18kHz (± 3dB)

Packging & Delivery

  • Min Order1 piece

Briefing

The WL12 is a full horn-loaded, bi-amp driven dual 12" 3-way high performance line array system.

Detailed

WL12 Specification
TYPEThree-way, bi-amp line array element
FREQUENCY RESPONSE52Hz-18kHz ± 3dB
DRIVERSLF: 2 x 12"(300mm)/3"(75mm) voice coil, ultra-long
excursion, neodymium magnet drivers
MF: 2 x 6.5" (165mm)/2" (50mm) coil, Ferrite
magnet drivers, horn loaded
HF: 3 x 1"(25mm) exit neodymium magnet
compression drivers, horn loaded
MAXIMUM SPLLF: 139dB, MF: 140dB,  HF: 145dB
NOMINAL IMPEDANCELF: 8 ohms, MF + HF: 8 ohms
DISPERSION90º horizontal (-6dB), 120º horizontal (-10dB),7.5° vertical
CROSSOVER320Hz active, 4kHz internal passive
FINISHmulti-laminate birch and poplar-ply construction
Black textured paint
CONECTORS2 x NL4 type
DIMENSIONS (ex. pins)(W) 1136mm x (H) 371mm x (D) 526mm
 (W) 44.7in x (H) 14.6in x (D) 20.7in
WEIGHT64kg (141lbs)
FEATURE:
1. Imported voice coil and cone, high quality Neodymium woofer and tweeter
2. Rigging components:high grade steel with anti-corrosion coating
3. FIrst grade Russian birch plywood
4.The WL12 is a full horn-loaded, bi-amp driven dual 12" 3-way line array system. Its high output is achieved by applying horn loading technology to all frequency bands, which effectively boosts the acoustic output energy in the low, mid and high frequencies.
WL12 details
ANGLE ADJUSTMENT
WL12 details
CROSSOVER
WL12 details
LF : 12 inch neodymium magnet drivers
Horn design and reflective loading for improved efficiency and output, improved directional control while reducing power consumption and noise from all directions of the horn.
WL12 details
LF : 12 inch neodymium magnet drivers
Horn design and reflective loading for improved efficiency and output, improved directional control while reducing power consumption and noise from all directions of the horn.
Neodymium magnetic horn
MF : Two 6.5 inch Ferrite magnet drivers
The mid-frequency section uses two 6.5-inch cone-shaped cone drivers, which are responsible for the reproduction of the 300Hz to 4kHz vocal frequency signal, enhancing vocal clarity and consistency, more efficient and better directivity control than traditional direct-firing designs
Neodymium magnetic horn
HF : Three 1 inch neodymium magnet
The high-frequency part is equipped with three 1-inch throat drivers, which are responsible for signal reproduction above 4kHz, minimize distortion and expand high-frequency response.
line array
line array
