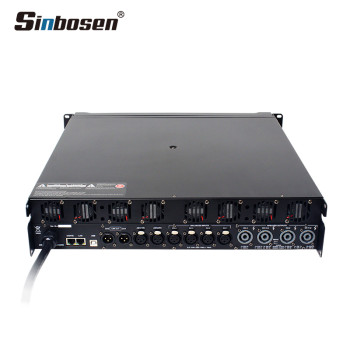

2500w DSP 4 channel class td switching power amplifier touch screen 4.3"
group nameDSP Amp For Top Speaker
-
Min Order1 piece
brand nameSinbosen| Audio sound system manufacturer
modelDSP22000Q
payment methodWestern Union, MoneyGram, T/T, Paypal
-
update timeFri, 08 Nov 2024 14:12:22 GMT
Paramtents
8Ω Stereo Power 2500WX4CH
4Ω Stereo Power 4400WX4CH
digital input 1 x AES; 0dBFs=+21dBu
Amplifier Type Professional DSP Power Amplifier
Filter FIR filter
Channels 4 channesl power amplifier
Packging & Delivery
Min Order1 piece
Briefing
DSP22000Q is 4 in 4 out digital processing module boards, aiming at professional amplifier.
4400wx4ch,4ohms/2500wx4ch,8ohms.
4400wx4ch,4ohms/2500wx4ch,8ohms.
Detailed
DSP10000Q |
DSP12000Q
|
DSP20000Q
|
DSP22000Q
|
||
|
8Ω Stereo Power (RMS)
|
1350WX4 |
1500WX4
|
2200WX4 |
2500WX4
|
|
|
4Ω Stereo Power (RMS)
|
2100WX4 |
2800WX4
|
4000WX4
|
4650WX4
|
|
|
8Ω Bridged Power(RMS)
|
4200WX2 |
5600WX2
|
8000WX2
|
9500WX2
|
|
4Ω Bridged Power(RMS) | 5000WX2 | 7000WX2 | 10000WX2 | 15000WX2 | |
Analog inputs | 4 x XLR balanced | ||||
Analog outputs | 4 x XLR balanced | ||||
Digital input | 1 x AES/EBU; 0dBFs=+21dBu | ||||
THD+N distortion | ≤0.005 @1kHz 20dBu ≤0.004 @1kHz 0dBu | ||||
Signal-to-noise ratio (A-weighted) | >117dB | ||||
Maximum input level | >20 dBu | ||||
Maximum output level | >14 dBu | ||||
Frequency response | 20Hz – 20kHz; -0.5dBu at 20Hz and 20kHz | ||||
▎FEATURE:
●4 Channel Class TD Switching power amplifier with DSP
●4 x 2,200 Watts into 8 Ohms,4 x 4,000 Watts into 4 Ohms
●Create SUPER sound quality
●Control the sound effect by Touch on front 4.3" LED display screen Or control the sound effect by Computer
●DSP software with AES digital signal input and FIR function, Taps 256-512;
●Bridge-mode operation for Touring Applications
●Comprehensive protection scheme
●Use Original Siemens high quality capacitor 14pcs 3600uf 200V +4pcs 2200uf 200V
●Use Original ONSEMI transistor
●Original Neutrik XLR*/Speakon connectors
●Built in 12pcs fans, Effective cooling design
●Temperature protection;Over current protection;Short circuit protection built-in
● DANTE function is selectable, cost more 100USD
Why choose DSP Power Amplifier?
|
1.48kHz sampling frequency DSP processor, 24-bit A/D and D/A conversion; 4 inputs and 4 outputs DSP module;
|
|
2. The input mode can choose analog input, AES digital signal input, and DANTE input. Different signals can be input at the same time. It is equipped with an automatic switch and can set the signal priority.
|
|
3. The output channel temperature is visually displayed on the display screen, and the temperature status of the power amplifier can be monitored at any time.
|
4. Output amplifier protection indicator light, the PRO indicator light is always on when the amplifier is in protection state. |
5. Quick copy function; copy the adjusted parameters to other channels. |
|
6. Configure signal generator; white noise; pink noise; sine wave signal.
|
7. The 2U panel is equipped with a 4.3-inch touch screen, which can directly adjust the parameters to be adjusted by touch or connect to a computer to control through PC control software; |
8. The operation panel can store 30 kinds of user programs, which can be called quickly and conveniently. |
9. The device can be locked through software or panel to prevent misoperation |
DSP processor parameters
|
parametric equalizer
|
Input with 7-band parametric equalization Output with 7-band parametric equalization |
||
|
Automatic phase correction FIR
|
Asymmetry, 512Taps, automatic phase correction FIR, perfectly compatible with third-party application software
|
||
Equalizer type | All equalization filters can be set to LOW PASS Filter; High Pass Filter; PEQ; All Pass | ||
equalizer gain | Range: -15dB ~+15dB, step accuracy: 0.1dB | ||
Center frequency | Adjustable with 1Hz step accuracy within the 20Hz~20kHz frequency band | ||
Q value/broadband | Q value range: 0.3~15, step is 0.1 | ||
Input & output gain | Range: -12dB~+12dB, step accuracy: 0.1dB | ||
High and low pass filtering of IIR frequency division part | Butterworth slope 12/24/48 dB selectable Bessel slope 12/24/48 dB optional Linkwitz-Riley slope 12/24/48 dB selectable | ||
High-pass/low-pass/band-pass filters for the FIR crossover section | Type: High-pass/low-pass/band-pass filter optional Taps range: 256 ~ 512, Minimum attenuation to -120dB Time window type: Rect/Sinc/Keiser/Hanning/Hamming/Blackman/Nuttal/Sine optional | ||
|
noise generator
|
White/pink noise/sine wave generator, level range: -40dBu~0dBu
|
||
Output COMP compressor | Selectable ratio range: 1.00:1~INF:1; inflection point: 0~100% Mode type: hard pressure; medium; soft pressure Supply range: -12dBu~+12dBu Start control time: 0.1ms~500ms; Release time: 0.001ms~2000ms | ||
Output peak pressure limit | Threshold range: 20dBu~-10dBu Start control time: 0.1ms~900ms; Release time: 0.04s~6s | ||
|
Noise floor
|
-90 dBu
|
||
