1 - 2,000 piece
group nameThrust Ball Bearing
Min Order1 piece
brand nameSUNBEARING Rolling Bearing Manufacturer
model51104
payment methodL/C, T/T, Paypal, Alibaba Trade Assurance
update timeMon, 04 Apr 2022 16:23:52 GMT
Color Silver
Place of origin Dalian, China
Material Chrome Steel GCR15
Service OEM Service
Sample Free Sample
MOQ 1
Size4cm x 2cm x 1cm
Weight0.04kg / piece
Min Order1 piece
Product Description

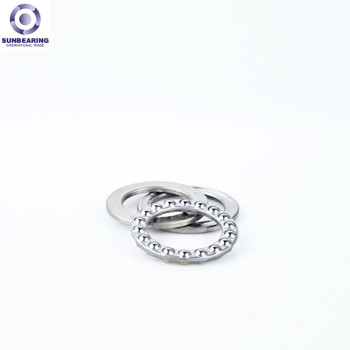

Thrust Ball Bearing 51104 | |
---|---|
Specification | |
Design Units | Metric |
Structure | Ball Bearing |
Weights | 0.038kgs |
Cage Material | Steel cage |
Material | Chrome Steel GCR15 |
Ball Type | Carbon chromium steel |
Seals Type | Metal Seals |
Certificate | ISO9001:2008 |
Advantage | High-grade steel ball - quiet and smooth high-speed rotation |
Number of Rows | Single |
Dimensions | |
d-Bore Diameter | 20mm |
D-Outer Diameter | 35mm |
Precision Rating | P5 P6 P4 P2 P0 |
Clearance |
C2 C3 C4 C5 C0 |
H-Total Width | 10mm |
Basic Load Ratings | |
Cr Dynamic Load Rating | 15100N |
C0r Static Load Rating | 26600N |
Thrust Ball Bearing
Thrust ball bearing is designed to withstand thrust load when running at high speed. It consists of a washer with a ball rolling groove.Because the ring is cushion, thrust ball bearing is divided into two types: flat base and adjustable center ball bearing.In addition, the bearing can bear axial load, but not radial load.
Thrust Ball Bearing Feature
1. One-way and two-way are available
2. In order to allow installation errors, either one way or two ways, you can choose the spherical cushion or the spherical seat ring.
3. High-quality steel - super clean steel that can extend bearing life up to 80%
4. High grease technology -- lubricant technology can extend the life of grease and improve the performance of bearing
5. High grade steel ball -- it is quiet and smooth when rotating at high speed
6. Installation error can be allowed by making use of the sleeve in the selection.
Application
Crane hook,
Vertical pumps
Vertical centrifuge
Jack
Low speed reducer
