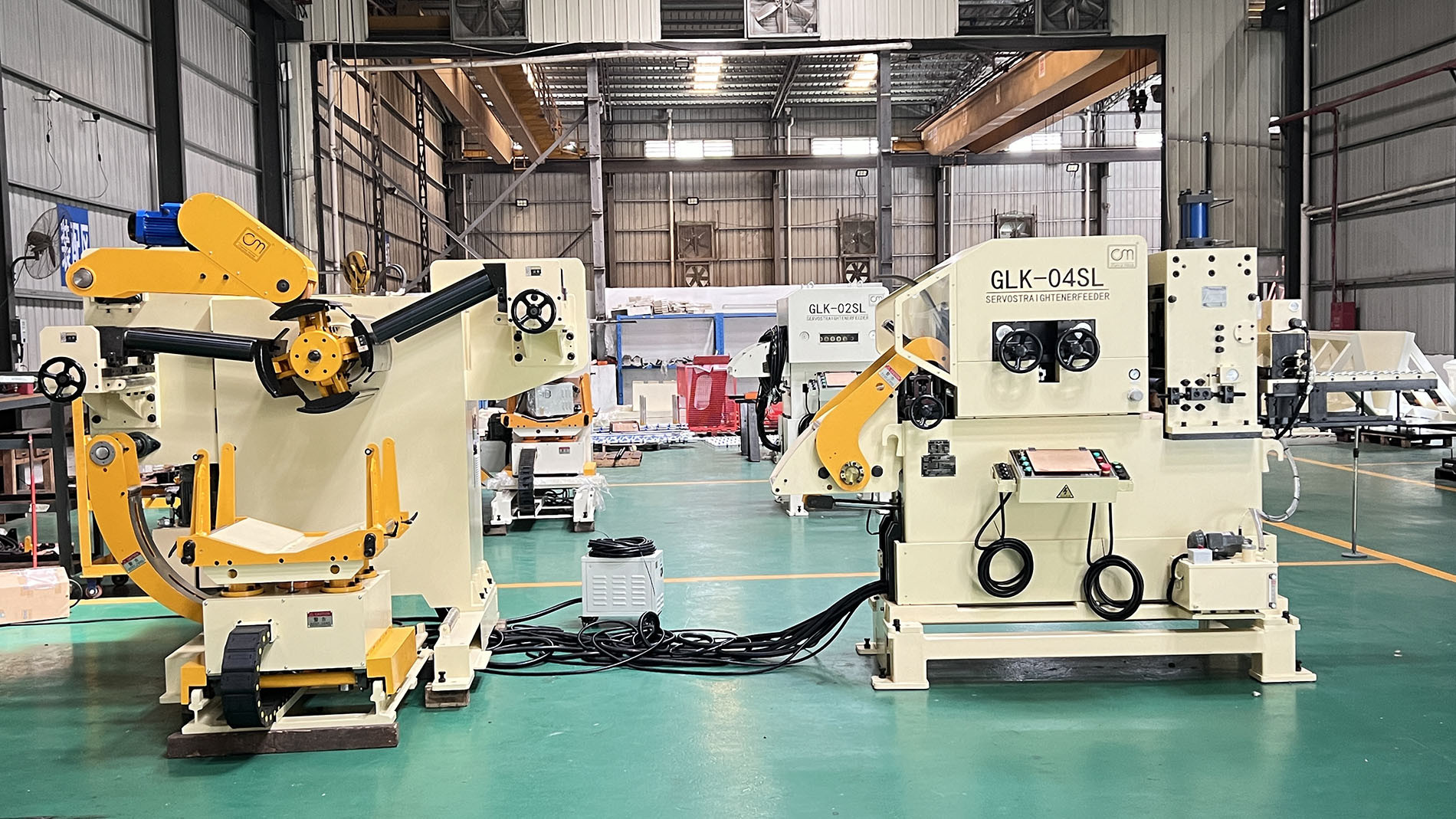

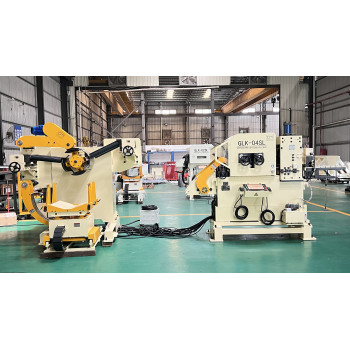

Special for medium plate type 3-in-1 servo decoiler straightener feeder machine
group nameDecoiler Straightener Feeder
-
Min Order1 piece
brand nameChance Move Machinery Manufacturer
modelGLK4
payment methodT/T, L/C, PayPal, Westem Union
-
update timeFri, 08 Nov 2024 00:01:52 GMT
Packging & Delivery
Min Order1 piece
Briefing
Detailed
Product Features
1.Working space will be minimized by innovative structure of the machine.
2.The operation panel adopts color liquid crystal display, large size touch screen, high clear operation picture, and operation safety system, so that even first-time users can operate at ease.
3.Sound operating system user-friendly design will shorten the preparatory work and advanced automatic diagnosis system, to help operators quickly control the outstanding performance of the machine.
4.Imported servo system and ensures high precision feeding.
5.Feeding roller and leveling roller by special heat treatment, high hardness ( HRC62 °) wear resistance, long service life.
6.Specially designed for the strong thick plate up and down leveling back up roller set, can achieve the guaranteed stress elimination effect.
7.The design concept of doubling the safety factor can prolong the safe service life of the equipment.
8.Various options are available for different sizes of punching machines and operational requirements.Special standard is also accepted.
The hoisting machine main shaft expansion and contraction structure is smoothly moved to the fixed waiting coil car, and the loading coil car is fixed and does not move.The material frame moves up and then returns to the original position for normal operation.
The material frame is moved to the trolley and returned to the original position, and the material is required to make the gap rotation and discharge according to the requirements.
During the operation, the material is compacted to prevent the material roll from scattering. During the automatic operation, the material pressing wheel will automatically adjust the speed along with the change of the outer diameter of the material, so that the linear velocity of the material pressing wheel and the material roll is completely matched to prevent the material roll from scattering.
Located on the left side of the material rack and used for positioning the width of the material roll, the outer roller can be opened to facilitate the material roll to enter the expansion and contraction mechanism, and the limit roller must be closed to perform the automatic operation function
It is used to guide the material head to enter the leveling machine so that the material can smoothly enter the leveling device
The roller material is made of high quality bearing steel and hardened to achieve HRC60±2 hardness.
Correction amount adjustment with hand width adjustment, eccentric shaft end with dial for display
It is used for the smooth transfer between the fixed feeding and the mold, and the high-quality imported wear-resistant Fulai wheel is installed on the supporting frame.
|
Model
|
GLK04-600H
|
GLK04-800H
|
GLK04-1000H
|
GLK04-1300H |
|
Width of Material（mm）
|
70-600
|
70-800
|
70-800
|
70-1300 |
|
Thickness of Material（mm） |
0.6-6.0 |
|||
|
Max Coil Weight(kg)
|
5000
|
5000/7000
|
7000
|
7000 |
Coil I.D(mm) | 508 | |||
Max Coil O.D.(mm) | 1400 | |||
Max Feeding Length(mm) | ~500※ | |||
Max.line Speed(m/min) | 16-24 | |||
Working Rollers | 5 on top / 4 on bottom | |||
Feeding Rollers | 1 Group | |||
Main Motor(kw) | AC7.5 | AC11 | AC11 | AC15 |
Uncoil Expansion | Hydraulic | |||
Power（V） | 2.2 | 2.2/3.7 | 3.7 | 3.7 |
Uncoil Motor(kw) | 200/220 | |||
Operating Air (Mpa) | 0.49 | |||
|
Model
|
GLK04-600H
|
GLK04-800H | GLK04-1000H | GLK04-1300H |
|
|
|
0.8~2.3
|
|
1000 | 1000 |
|
|
2.5
|
933 | 933 |
|||
|
2.8
|
920 | 920 |
|||
3.2 | 714 | 714 | 714 | ||
4.0 | 457 | 457 | 457 | 457 | |
4.5 | 361 | 361 | 361 | 361 | |
5.0 | 293 | 293 | 293 | 293 | |
6.0 | 203 | 203 | 203 | 203 | |
The above figures are the material having yield strength of 245N/mm² max
|
Model
|
GLK04-600H | GLK04-800H |
GLK04-1000H
|
GLK04-1300H
|
|
|
|
2.5
|
255 | 252 |
250
|
146
|
|
2.8
|
205 | 203 |
202
|
199
|
|
|
3.2
|
177 | 175 |
174
|
171
|
|
4.0 | 138 | 136 | 135 | 133 | |
4.5 | 120 | 119 | 118 | 116 | |
5.0 | 106 | 105 | 104 | 103 | |
6.0 | 81 | 81 | 81 | 81 | |
The above figures are the material having yield strength of 600N/mm² max
