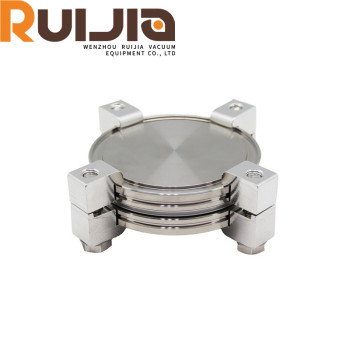

Vacuum Flanges ISO vacuum blank flange ISO63-ISO500
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeMon, 26 Aug 2024 16:36:44 GMT
Paramtents
Product Name Vacuum Flanges ISO vacuum blank flange ISO63-ISO50
Standard KF,ISO,CF Standard
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
ISO vacuum blank flange are made of type 304/316L stainless steel, centering ring and seal assemblies are offered with an aluminum centering ring and a space ring, or with a stainless centring ring and an aluminium space ring.Single and double claw clamp are made of stainless.
It is used to close off the open part where not required, with size range from ISO63-ISO500 vacuum blank flanges.
It is used to close off the open part where not required, with size range from ISO63-ISO500 vacuum blank flanges.
Detailed
ISO vacuum flange feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO vacuum flange specifications
| Product Name | Vacuum Flanges ISO vacuum blank flange ISO63-ISO500 |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | KF,ISO,CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum flange types | ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short) |
Product parameters
ISO Vacuum Blank Flange
| Unit:mm | |||||
| Model No. | Material | A | B | C | D |
| ISO63B | SS304 | 95 | 70 | 12 | 90 |
| ISO80B | SS304 | 110 | 83 | 12 | 105 |
| ISO100B | SS304 | 130 | 102 | 12 | 125 |
| ISO160B | SS304 | 180 | 153 | 12 | 175 |
| ISO200B | SS304 | 240 | 213 | 12 | 235 |
| ISO250B | SS304 | 290 | 261 | 12 | 285 |
| ISO320B | SS304 | 370 | 318 | 17 | 365 |
| ISO400B | SS304 | 450 | 400 | 17 | 445 |
| ISO500B | SS304 | 550 | 501 | 17 | 545 |
| **SS316, Aluminum is upon request | |||||
