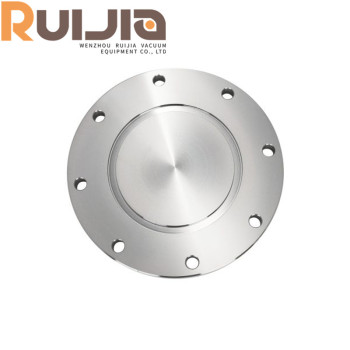

China Sus304 316 Vacuum ISO Bolted Blank flange vacuum flanges ISO63-ISO630
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 27 Aug 2024 15:35:11 GMT
Paramtents
Product Name ISO vacuum bored blank flange are made of type 304
Standard KF,ISO,CF Standard
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
ISO vacuum bored blank flange are made of type 304/316L stainless steel, centering ring and seal assemblies are offered with a stainless centring ring and an aluminium retainer ring.O-ring material are Viton and Buna-N for your choices.Single and double claw clamp are made of stainless.ISO bored blank size range from ISO63-ISO630 vacuum blank flanges.
Detailed
ISO bolted blank flange feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO bolted blank flange specifications
| Product Name | ISO bolted blank flange ISO63-ISO630 |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | KF,ISO,CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum flange types | ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short) |
Product parameters
ISO bolted blank flange
| Unit:mm | ||||||
| Model No. | Material | A | B | C | E*No | P.C.D. |
| ISO63BB | SS304 | 130 | 70 | 12 | 9*4 | 110 |
| ISO80BB | SS304 | 145 | 83 | 12 | 9*8 | 125 |
| ISO100BB | SS304 | 165 | 102 | 12 | 9*8 | 145 |
| ISO160BB | SS304 | 225 | 153 | 16 | 11*8 | 200 |
| ISO200BB | SS304 | 285 | 213 | 16 | 11*12 | 260 |
| ISO250BB | SS304 | 335 | 261 | 16 | 11*12 | 310 |
| ISO320BB | SS304 | 425 | 318 | 20 | 14*12 | 395 |
| ISO400BB | SS304 | 510 | 400 | 20 | 14*16 | 480 |
| ISO500BB | SS304 | 610 | 501 | 20 | 14*16 | 580 |
| ISO630BB | SS304 | 750 | 651 | 24 | 14*20 | 720 |
| **SS316, Aluminum is upon request | ||||||
