China Sus304 316 ISO-BF Bolted flange tapped Vacuum ISO flanges ISO63-ISO630
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeThu, 24 Oct 2024 09:25:27 GMT
Paramtents

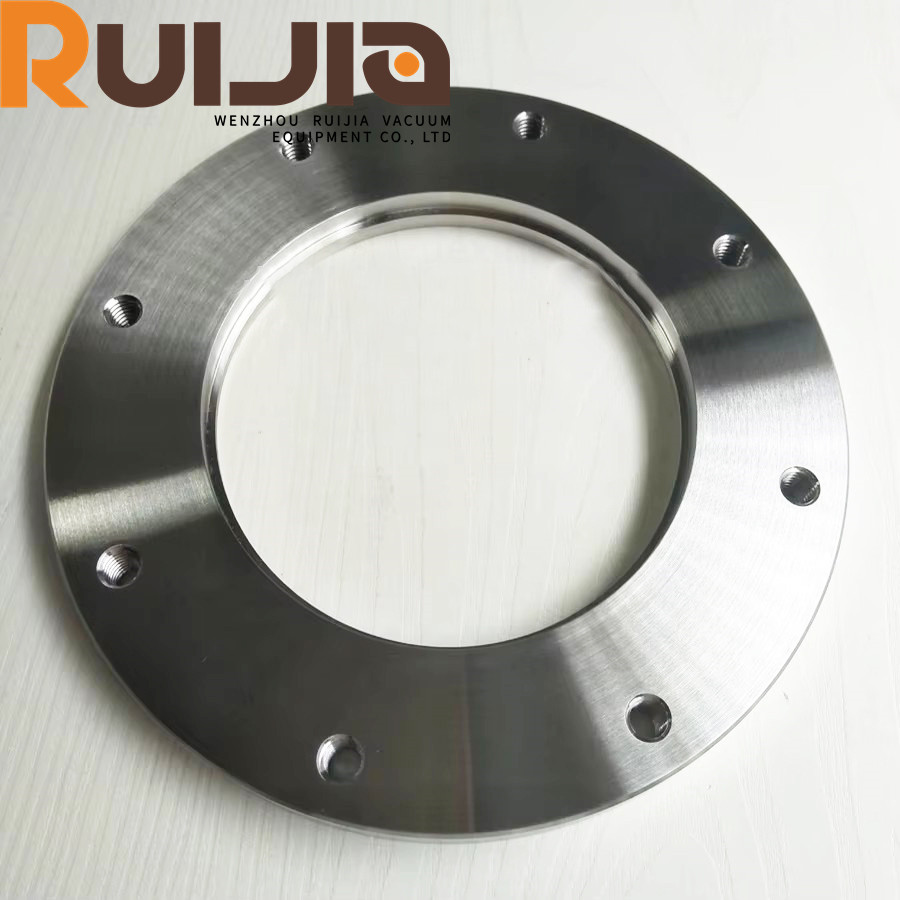

Product Name ISO-BF vacuum bolted flange tapped ISO63-ISO630
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
ISO-BF bolted flanges, tapped,infinitely rotatable and compatible with NW63 to NW630 size ISO-BF bolted vacuum flanges. Bolted flanges are joined using our ISO flange bolt and nut set.
Detailed
ISO-BF bolted flanges feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO-BF bolted flanges specifications
| Product Name | ISO-BF vacuum bolted flange tapped ISO63-ISO630 |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250, ISO320,ISO400,ISO500,ISO630 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | ISO Standard flange |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum flange types | ISO blank flange,ISO bored blank, long weld stub flange,ISO half nipple(long and short) |
Product parameters
ISO-BF Bolted Flange-Tapped
| Model No. | Material | A | B | C | D | E*No | P.C.D. |
| ISO63BFTAP | SS304 | 130 | 70 | 12 | 63.7 | M8*4 | 110 |
| ISO80BFTAP | SS304 | 145 | 83 | 12 | 76.8 | M8*8 | 125 |
| ISO100BFTAP | SS304 | 165 | 102 | 12 | 102.2 | M8*8 | 145 |
| ISO160BFTAP | SS304 | 225 | 153 | 16 | 152.9 | M10*8 | 200 |
| ISO200BFTAP | SS304 | 285 | 213 | 16 | 203.7 | M10*12 | 260 |
| ISO250BFTAP | SS304 | 335 | 261 | 16 | 254.5 | M10*12 | 310 |
| ISO320BFTAP | SS304 | 425 | 318 | 20 | 305.3 | M12*12 | 395 |
| ISO400BFTAP | SS304 | 510 | 400 | 20 | 406.9 | M12*16 | 480 |
| ISO500BFTAP | SS304 | 610 | 501 | 20 | 508.8 | M12*16 | 580 |
| ISO630BFTAP | SS304 | 750 | 651 | 24 | 610.4 | M12*20 | 720 |
