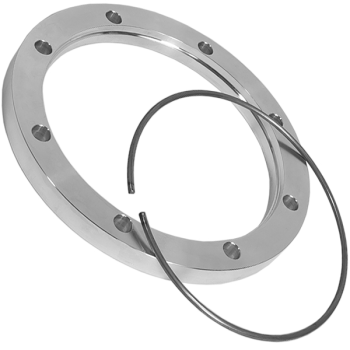

Vacuum ISO flange Rotatable Bolt Ring China ISO63-ISO500
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 27 Aug 2024 15:29:58 GMT
Paramtents
Product Name ISO Rotatable Bolt Ring ISO63-ISO500
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
ISO-BF rotatable bolt ring feature a bore for standard inch tube and piping diameters, ISO-MF Stainless Steel retaining rings are used to retain ISO-MF vacuum flange rotatable bolt rings.
Retain rotatable bolt rings
Stainless Steel construction
NW63 to NW500 flange sizes
Retain rotatable bolt rings
Stainless Steel construction
NW63 to NW500 flange sizes
Detailed
ISO Rotatable Bolt Ring feature
advantage
● Used in low & high vacuum. Along with the components they offer a simple solution for applications requiring easy and repeated assembly.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●The ISO-KF components are assembled by inserting a centering ring with viton o-ring between the two flange,then securing them with a vacuum clamps.
ISO Rotatable Bolt Ring specifications
| Product Name | ISO Rotatable Bolt Ring ISO63-ISO500 |
| Brand | RUIJIA |
| Size | ISO63-ISO500 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | ISO Standard flange |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
Product parameters
ISO Rotatable Bolt Ring
| Model No. | Material | A | B | C | D*No | P.C.D. |
| ISO63RBR | SS304 | 130 | 98.5 | 12 | 9*4 | 110 |
| ISO80RBR | SS304 | 145 | 113.5 | 12 | 9*8 | 125 |
| ISO100RBR | SS304 | 165 | 133.5 | 12 | 9*8 | 145 |
| ISO160RBR | SS304 | 225 | 185.7 | 16 | 11*8 | 200 |
| ISO200RBR | SS304 | 285 | 245.7 | 16 | 11*12 | 260 |
| ISO250RBR | SS304 | 335 | 295.7 | 16 | 11*12 | 310 |
| ISO320RBR | SS304 | 425 | 375.8 | 20 | 14*12 | 395 |
| ISO400RBR | SS304 | 510 | 458.8 | 20 | 14*16 | 480 |
| ISO500RBR | SS304 | 610 | 558.8 | 20 | 14*16 | 580 |
