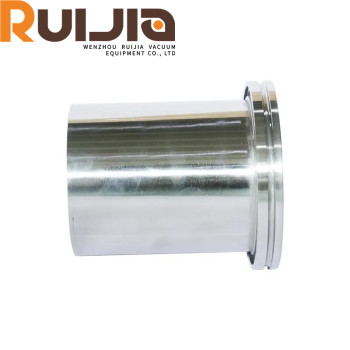

ISO-LF Half nipple Vacuum ISO nipple flanges China
group nameISO-K Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeTue, 27 Aug 2024 15:25:35 GMT
Paramtents
Product Name ISO-LF HALF NIPPLE ISO NIPPLES
Standard ISO Standard flange
Seal material Viton,Silocone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
ISO Flanges & Fittings / ISO Nipples / ISO-LF Half Nipple Vacuum Half nipples are manufactured with a flange on one end and raw tubing on the other. They can be used with quick connection fittings to make a vacuum tight connection without welding.They are often welded onto a custom vacuum system or instrument by a customer with in-huse welding capabilities.
Detailed
ISO-LF Half Nipple feature
advantage
ISO NIPPLES Features:
*High Vacuum Rated to 1×10-8 Torr
*Compatible with all ISO standard vacuum flanges and fittings
*Quick sealing and disassembly
*Custom lengths
*ISO-QF large size flanges
ISO-LF Half Nipple specifications
| Product Name | ISO-LF HALF NIPPLE ISO NIPPLES |
| Brand | RUIJIA |
| Size | ISO63-ISO500 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silocone,Buna-N seal |
| Standard | ISO Standard flange |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Surface | Sand Blasting or Polished Surface |
Product parameters
ISO-LF Half Nipple
| Model No. | Material | A | B | C |
| ISO63HN | SS304 | 95 | 63.5 | 100 |
| ISO80HN | SS304 | 110 | 76.2 | 100 |
| ISO100HN | SS304 | 130 | 101.6 | 100 |
| ISO160HN | SS304 | 180 | 152.4 | 100 |
| ISO200HN | SS304 | 240 | 203.2 | 100 |
| ISO250HN | SS304 | 290 | 254 | 100 |
| ISO320HN | SS304 | 370 | 304.8 | 100 |
| ISO400HN | SS304 | 450 | 406.8 | 100 |
| ISO500HN | SS304 | 550 | 508 | 100 |
| *Part number plus "K" for sand blasting surface | ||||
| *Part number plus "L" for polished surface | ||||
