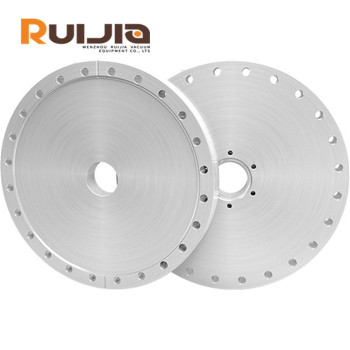

CF Vacuum Reducing Flange stainless steel 304
group nameCF Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 14:28:08 GMT
Paramtents
Product Name CF Vacuum conflat Reducing flange zero length
Standard CF Standard
Seal material SS304, SS316L
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Vacuum reducing flange,Conflat reducing flange,in vacuum pipeline systems, when pipes of different diameters need to be connected or when fittings cannot be directly matched with standard flanges, CF reducing flanges can effectively solve this problem.
Detailed
CF Vacuum Reducing Flange feature
advantage
● vacuum flange is a type of mechanical component that plays a crucial role in the construction of high-vacuum systems, particularly those used in the fields of physics, chemistry, and engineering research.
● Helium leakage test passed before shipping
● Plastic flange protective cap is included to avoid flange scratching during transportation
●CF vacuum flanges come in various sizes and shapes to accommodate different system configurations. Commonly, they feature a threaded or unthreaded design with standard or custom flange faces.
CF Vacuum Reducing Flange specifications
| Product Name | CF Vacuum conflat Reducing flange zero length |
| Brand | RUIJIA |
| Size | CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF275. |
| Material | SS304, SS316L |
| Seal material | Oxygen free copper, silver plated copper |
| Standard | CF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| CF Vacuum flange types | CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange |
Product parameter
CF Vacuum conflat Reducing flange
| Model No. | A | B | C | D | E | F*NO | G*NO |
| CF35RF16 | 69.5 | 12.7 | 15.8 | 26.9 | 58.7 | 6.7*6 | M4*6 |
| CF63RF16 | 113.6 | 18 | 15.8 | 26.9 | 92.1 | 8.4*8 | M4*6 |
| CF63RF35 | 113.6 | 18 | 38.1 | 58.7 | 92.1 | 8.4*8 | M6*6 |
| CF100RF35 | 151.6 | 20 | 38.1 | 58.7 | 130.3 | 8.4*16 | M6*6 |
| CF100RF63 | 151.6 | 20 | 63.5 | 92.1 | 130.3 | 8.4*16 | M8*8 |
| CF150RF35 | 202.5 | 22 | 38.1 | 58.7 | 181 | 8.4*20 | M6*6 |
| CF150RF63 | 202.5 | 22 | 63.5 | 92.1 | 181 | 8.4*20 | M8*8 |
| CF150RF100 | 202.5 | 22 | 101.6 | 130.3 | 181 | 8.4*20 | M8*16 |
| CF200RF35 | 253.2 | 24.7 | 38.1 | 58.7 | 231.8 | 8.4*24 | M6*6 |
| CF200RF63 | 253.2 | 24.7 | 63.5 | 92.1 | 231.8 | 8.4*24 | M8*8 |
| CF200RF100 | 253.2 | 24.7 | 101.6 | 130.3 | 231.8 | 8.4*24 | M8*16 |
| CF200RF150 | 253.2 | 24.7 | 152.4 | 181 | 231.8 | 8.4*24 | M8*20 |
| CF275RF35 | 336.5 | 28.5 | 38.1 | 58.7 | 306.5 | 10.3*30 | M6*6 |
| CF275RF63 | 336.5 | 28.5 | 63.5 | 92.1 | 306.5 | 10.3*30 | M8*8 |
| CF275RF100 | 336.5 | 28.5 | 101.6 | 130.3 | 306.5 | 10.3*30 | M8*16 |
| CF275RF150 | 336.5 | 28.5 | 152.4 | 181 | 306.5 | 10.3*30 | M8*20 |
| CF275RF200 | 336.5 | 28.5 | 203.2 | 231.8 | 306.5 | 10.3*30 | M8*24 |
Assembly Instructions for CF Flanges
1.Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edege counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
