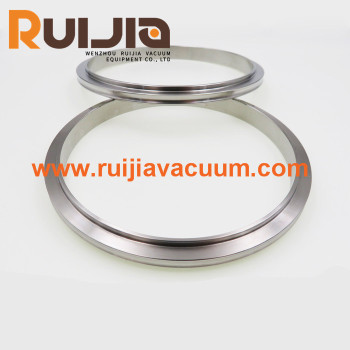

ISO Stainless Steel Vacuum Centering Ring
group nameISO-K Centering Rings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 14:25:42 GMT
Paramtents
Product Name ISO Stainless Steel Vacuum Centering Ring
Standard ISO Standard
Seal material SS304, SS316L
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Vacuum centering rings,Material: Often made from materials such as stainless steelor other corrosion-resistant metals to withstand the environment within a vacuum chamber.
Detailed
ISO Stainless steel Vacuum centering ring feature
advantage
● ISO Vacuum Centering Ring is a component used in precision engineering, particularly in applications requiring high accuracy and tight tolerances
●This could be in applications such as semiconductor manufacturing, optics assembly, or any high-precision part handling requiring vacuum control.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel304/316,aluminiumEN1.4301, EN1.4404.
●Designed to maintain airtight seals when placed in a vacuum environment, preventing leaks that could compromise the integrity of the vacuum chamber.
CF Vacuum Reducing Flange specifications
| Product Name | ISO Vacuum centering ring stainless steel304/316 |
| Brand | RUIJIA |
| Size | ISO63,ISO80,ISO100,ISO160,ISO200,ISO250,ISO320,ISO400,ISO500,ISO630 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | ISO Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum Centering Ring types | ISO centering ring,ISO centering ring with viton O’ring, ISO centering ring with NBR O’ring,ISO outer ring centering ring & viton O’ring |
ISO Stainless steel Vacuum centering ring parameter
ISO Vacuum Centering Ring Unit:mm
| Model No. | Material C/R | Material O'Ring | A | B | C | D |
| ISO63CRVSA | 304 S.S. | Viton/NBR | 67 | 69.6 | 8 | 3.9 |
| ISO80CRVSA | 304 S.S. | Viton/NBR | 80 | 82.6 | 8 | 3.9 |
| ISO100CRVSA | 304 S.S. | Viton/NBR | 99 | 101.6 | 8 | 3.9 |
| ISO160CRVSA | 304 S.S. | Viton/NBR | 150 | 152.6 | 8 | 3.9 |
| ISO200CRVSA | 304 S.S. | Viton/NBR | 210 | 212.6 | 8 | 3.9 |
| ISO250CRVSA | 304 S.S. | Viton/NBR | 257.5 | 260.4 | 8 | 3.9 |
| ISO320CRVSA | 304 S.S. | Viton/NBR | 312 | 317.3 | 12 | 5.6 |
| ISO400CRVSA | 304 S.S. | Viton/NBR | 394 | 399.2 | 12 | 5.6 |
| ISO500CRVSA | 304 S.S. | Viton/NBR | 494 | 500.2 | 12 | 5.6 |
| ISO630CRVSA | 304 S.S. | Viton/NBR | 644.5 | 650.5 | 12 | 5.6 |
| ISO63CRAA | 304 S.S. | Viton/NBR | 67 | 69.6 | 8 | 3.9 |
| ISO80CRAA | 304 S.S. | Viton/NBR | 80 | 82.6 | 8 | 3.9 |
| ISO100CRAA | 304 S.S. | Viton/NBR | 99 | 101.6 | 8 | 3.9 |
| ISO160CRAA | 304 S.S. | Viton/NBR | 150 | 152.6 | 8 | 3.9 |
| ISO200CRAA | 304 S.S. | Viton/NBR | 210 | 212.6 | 8 | 3.9 |
| ISO250CRAA | 304 S.S. | Viton/NBR | 257.5 | 260.4 | 8 | 3.9 |
| ISO320CRAA | 304 S.S. | Viton/NBR | 312 | 317.3 | 12 | 5.6 |
| ISO400CRAA | 304 S.S. | Viton/NBR | 394 | 399.2 | 12 | 5.6 |
| ISO500CRAA | 304 S.S. | Viton/NBR | 494 | 500.2 | 12 | 5.6 |
| ISO630CRAA | 304 S.S. | Viton/NBR | 644.5 | 650.5 | 12 | 5.6 |
| Model No. | Material C/R | Material O'Ring | A | B | C | D |
| ISO63CRSA | 304 S.S. | Viton/NBR | 67 | 69.6 | 8 | 3.9 |
| ISO80CRSA | 304 S.S. | Viton/NBR | 80 | 82.6 | 8 | 3.9 |
| ISO100CRSA | 304 S.S. | Viton/NBR | 99 | 101.6 | 8 | 3.9 |
| ISO160CRSA | 304 S.S. | Viton/NBR | 150 | 152.6 | 8 | 3.9 |
| ISO200CRSA | 304 S.S. | Viton/NBR | 210 | 212.6 | 8 | 3.9 |
| ISO250CRSA | 304 S.S. | Viton/NBR | 257.5 | 260.4 | 8 | 3.9 |
| ISO320CRSA | 304 S.S. | Viton/NBR | 312 | 317.3 | 12 | 5.6 |
| ISO400CRSA | 304 S.S. | Viton/NBR | 394 | 399.2 | 12 | 5.6 |
| ISO500CRSA | 304 S.S. | Viton/NBR | 494 | 500.2 | 12 | 5.6 |
| ISO630CRSA | 304 S.S. | Viton/NBR | 644.5 | 650.5 | 12 | 5.6 |
| ISO63CRAA | AL | Viton/NBR | 67 | 69.6 | 8 | 3.9 |
| ISO80CRAA | AL | Viton/NBR | 80 | 82.6 | 8 | 3.9 |
| ISO100CRAA | AL | Viton/NBR | 99 | 101.6 | 8 | 3.9 |
| ISO160CRAA | AL | Viton/NBR | 150 | 152.6 | 8 | 3.9 |
| ISO200CRAA | AL | Viton/NBR | 210 | 212.6 | 8 | 3.9 |
| ISO250CRAA | AL | Viton/NBR | 257.5 | 260.4 | 8 | 3.9 |
| ISO320CRAA | AL | Viton/NBR | 312 | 317.3 | 12 | 5.6 |
| ISO400CRAA | AL | Viton/NBR | 394 | 399.2 | 12 | 5.6 |
| ISO500CRAA | AL | Viton/NBR | 494 | 500.2 | 12 | 5.6 |
| ISO630CRAA | AL | Viton/NBR | 644.5 | 650.5 | 12 | 5.6 |
