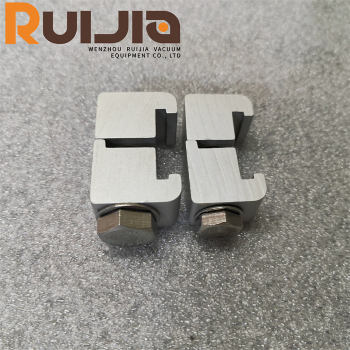

ISO Vacuum Double Wall Clamp SS304/316
group nameISO-K Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 13:48:10 GMT
Paramtents
Product Name ISO Vacuum double claw clamps Aluminium
Size ISO63,ISO160,ISO320.
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Double Claw Clamps,ISO type,is made out of aluminium,ISO fittings are quick to assemble using claw clamps and can be connected in any orientation. Double claw clamps hooks into a ridged groove in the back side of the ISO vacuum flange.
Detailed
ISO Vacuum Double Wall Clamp SS304/316 feature
advantage
●Used in semiconductor manufacturing, national defense research, etc.
● Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
● The packaging method of vacuum clamps varies depending on their material. Stainless steel vacuum clamps are packaged and sold after secondary polishing treatment, while aluminum alloy vacuum clamps are cleaned and packaged after electrolytic polishing.
ISO Vacuum Double Wall Clamp SS304/316 specifications
| Product Name | ISO Vacuum double claw clamps Aluminium |
| Brand | RUIJIA |
| Size | ISO63,ISO160,ISO320. |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | ISO Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| ISO Vacuum clamp types | ISO vacuum single wall clamp, ISO vacuum double wall clamp, ISO vacuum double claw clamp, ISO vacuum nail clamps. |
ISO Vacuum Double Wall Clamp SS304/316 parameters
ISO Vacuum double wall clamps Aluminium Unit:mm
| Model No. | Material | A | B | Min.Quantity | Fit Flange |
| ISO63-100DWCA | Aluminium | 45 | M8 | 4 | ISO63 |
| 4 | ISO80 | ||||
| 4 | ISO100 | ||||
| ISO160-250DWCA | Aluminium | 45 | M10 | 4 | ISO160 |
| 6 | ISO200 | ||||
| 6 | ISO250 | ||||
| ISO320-500DWCA | Aluminium | 60 | M12 | 8 | ISO320 |
| 8 | ISO400 | ||||
| 12 | ISO500 |
ISO Vacuum Double Claw Clamp 316L.S.S detail
Production Center
Packing & Shipping
Application
