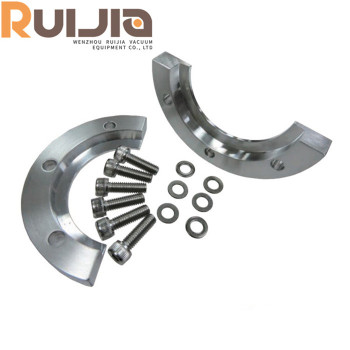

KF Vacuum Flange Bulkhead Clamp
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 13:47:12 GMT
Paramtents
Product Name KF Vacuum Flange bulkhead clamp
Size NW16,NW25,NW40,NW50
Seal material Viton,Silicone,Buna-N seal
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Bulkhead clamps,KF type,stainless steel,KF Vacuum Bulkhead Clamp is a device used in vacuum technology to secure vacuum lines or fittings to a surface, typically a vacuum chamber or bulkhead.
Detailed
KF Vacuum Flange Bulkhead Clamp feature
advantage
●Used in high-tech industries such as semiconductor manufacturing, national defense research, aerospace, bio pharmaceuticals, LCD, photovoltaic solar energy, etc.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel 304/316 or aluminium.
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards
KF Vacuum Flange Bulkhead Clamp specifications
| Product Name | KF Vacuum Flange bulkhead clamp |
| Brand | RUIJIA |
| Size | NW16,NW25,NW40,NW50 |
| Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF(NW)Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF Vacuum clamp types | KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200) |
KF Vacuum Flange Bulkhead Clamp parameters
KF Vacuum Flange bulkhead clamp Unit:mm
| Model No. | Material | A | B | C | D | Bolt Size*No |
| NW-16-BCP | A6061-T6 | 50.8 | 38.1 | 9.17 | 22.86 | #10-32×5/8" L*6 |
| NW-25-BCP | A6061-T6 | 60.2 | 48.01 | 9.83 | 32 | #10-32×5/8" L*6 |
| NW-40-BCP | A6061-T6 | 74.68 | 61.98 | 9.3 | 46.22 | #10-32×5/8" L*6 |
| NW-50-BCP | A6061-T6 | 95.25 | 82.6 | 10.26 | 59.69 | #10-32×5/8" L*8 |
| NW-16-BCP-M | A6061-T6 | 50.8 | 38.1 | 9.17 | 22.86 | M5×16L*6 |
| NW-25-BCP-M | A6061-T6 | 60.2 | 48.01 | 9.83 | 32 | M5×16L*6 |
| NW-40-BCP-M | A6061-T6 | 74.68 | 61.98 | 9.3 | 46.22 | M5×16L*6 |
| NW-50-BCP-M | A6061-T6 | 95.25 | 82.6 | 10.26 | 59.69 | M5×16L*6 |
*O'Ring color for NBR material is black, brown is available upon request.
*O'Ring color for Viton material is brown, black is available upon request.
