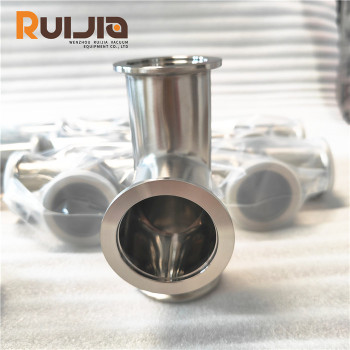

KF Vacuum Flange Fittings Tees
group nameKF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 13:20:24 GMT
Paramtents
Product Name KF Vacuum flange fittings Tees
Size KF16,KF25,KF40,KF50
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
KF Vacuum Tees,Flange fittings Tees is a kind of pipe fitting, which is widely used in the helium mass spectrometer leak detector for leak detection.
Detailed
KF Vacuum Flange Fittings Tees feature
advantage
●Its application is not limited to the branching and merging of pipelines, but can effectively split the fluid in one pipeline into two or merge the fluids in two pipelines into one.
● Size: Ensure that the elbow's inner diameter matches the tube or pipe it will connect to, and its outer diameter aligns with the flanges or other fittings in your system.
● Regarding testing, the testing items for vacuum tees include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, and corrosion resistance testing
KF Vacuum Flange Fittings Tees specifications
| Product Name | KF Vacuum flange fittings Tees |
|---|---|
| Brand | RUIJIA |
| Size | KF16,KF25,KF40,KF50 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| KF flange fittings types | KF 90 degree elbow, KF 90 degree elbow aluminium, KF Tees,KF Tee aluminium,KF unequal Tees, KF 4-way crosses,KF Five-way crosses, KF six-way crosses. |
KF Vacuum Flange Fittings Tees parameters
KF Vacuum flange fittings Tees Unit:mm
| Model No. | Material | A | B | C | D | Available Area |
| KF16TA | 304S.S | 38.3 | 19.05 | 30 | 76.6 | U.S.A |
| KF25TA | 304S.S | 51.4 | 25.4 | 40 | 102.8 | U.S.A |
| KF40TA | 304S.S | 61 | 38.1 | 55 | 122 | U.S.A |
| KF50TA | 304S.S | 80 | 50.8 | 75 | 160 | U.S.A |
| KF16TE | 304S.S | 40 | 19.05 | 30 | 80 | Europe |
| KF25TE | 304S.S | 50.8 | 25.4 | 40 | 100 | Europe |
| KF40TE | 304S.S | 65 | 38.1 | 55 | 130 | Europe |
| KF50TE | 304S.S | 80 | 50.8 | 75 | 140 | Europe |
Special Size available Upon Request.
Part number plus "k" for sand blasting surface.
Part number Plus "L" for polished surface.
