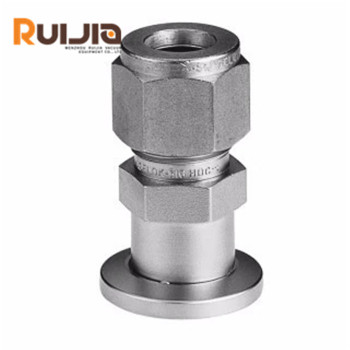

KF to Swagelok Adaptor Stainless Steel
group nameKF to Swagelok Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 13:02:18 GMT
Paramtents
Product Name Vacuum fittings KF swagelok adaptor
Size KF16SWA6,KF16SWA13,KF25SWA6,KF25SWA13,KF40SWA6,KF4
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Swagelok adaptor,KF Swagelok adaptors is suitable for medium to vacuum systems quick overlap and disassembly, they are particularly useful in applications that require frequent replacement or cleaning.
Detailed
KF to Swagelok Adaptor Stainless Steel feature
advantage
●Application:suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
●Size:Vacuum flanges Adaptor come in various sizes and types to ensure compatibility and seal integrity when connecting different pieces of equipment.
●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
KF to Swagelok Adaptor Stainless Steel specifications
| Product Name | KF Vacuum flange fittings Tees |
|---|---|
| Product Name | Vacuum fittings KF swagelok adaptor |
| Brand | RUIJIA |
| Size | KF16SWA6,KF16SWA13,KF25SWA6,KF25SWA13,KF40SWA6,KF40SWA13,KF50SWA6,KF50SWA13 |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF-Swagelok Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
KF to Swagelok Adaptor Stainless Steel parameters
Vacuum fittings KF swagelok adaptor Unit:mm
| Model No. | Material | A | B | C | VCR |
| KF16SWA6 | 304S.S | 30 | 4.8 | 36.6 | 1/4'' |
| KF16SWA13 | 304S.S | 30 | 10.8 | 45 | 1/2'' |
| KF25SWA6 | 304S.S | 40 | 4.8 | 36.6 | 1/4'' |
| KF25SWA13 | 304S.S | 40 | 10.8 | 54.3 | 1/2'' |
| KF40SWA6 | 304S.S | 55 | 4.8 | 36.6 | 1/4'' |
| KF40SWA13 | 304S.S | 55 | 10.8 | 54.3 | 1/2'' |
| KF50SWA6 | 304S.S | 75 | 4.8 | 36.6 | 1/4'' |
| KF50SWA13 | 304S.S | 75 | 10.8 | 54.3 | 1/2'' |
Special Sizes Available Upon Request.
