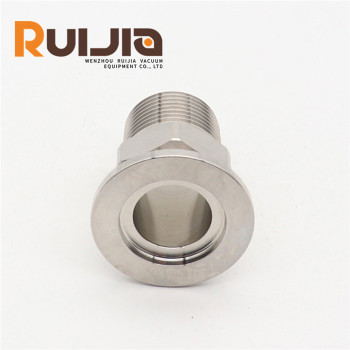

KF Male Pipe Adaptor(NPT) Vacuum Adaptor
group nameKF Male Pipe Adaptor
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 23 Oct 2024 13:00:18 GMT
Paramtents
Product Name Vacuum fittings KF Male Pipe Adaptor
Size KF16MPT3,KF16MPT6,KF25MPT3,KF25MPT6,KF25MPT13,KF25
Seal material Viton,Silicone,Buna-N seal
Material SS304, SS316L
Packging & Delivery
Min Order1 piece
Briefing
Vacuum adaptor,Male,KF,Male pipe adaptors is able to connection of various components, ensuring that they can work together seamlessly.
Detailed
KF Male Pipe Adaptor(NPT) Vacuum Adaptor feature
advantage
●Application:suitable for various scientific research and industrial applications, such as materials research, semiconductor manufacturing, bio medicine, and other fields,
●Thread Type: Adaptor often feature standard thread types (such as NPT, BSP, etc.) which can be screwed onto various equipment or flanges.
●Testing: The main testing includes checking its sealing performance, dimensional accuracy, and material qualification
KF Male Pipe Adaptor(NPT) Vacuum Adaptor specifications
| Product Name | Vacuum fittings KF Male Pipe Adaptor |
| Brand | RUIJIA |
| Size | KF16MPT3,KF16MPT6,KF25MPT3,KF25MPT6,KF25MPT13,KF25MPT19,KF40MPT3,KF40MPT6,KF40MPT13,KF40MPT19. |
| Material | SS304, SS316L |
| Seal material | Viton,Silicone,Buna-N seal |
| Standard | KF Standard |
| Temperature | -200~800℃ |
| Working Pressure | Vacuum~atmosphere pressure |
| Helium Leak Test | 1×10 -9 Pa・m³/sec or less |
| Packing | sealed plastic bag with a protective plastic cap. |
| Flange Adaptor types | ANSI-KF Tubulated Adaptor,CF-ISO Tubulated Adaptor,ISO-KF Tubulated Adaptor,CF reducing adaptor,KF-VCR Male/Female Adaptor,KF-Swagelok adaptor,KF Male/Female Pipe adaptor,KF-KF conical reducing adaptor,ISO-KF/ISO-ISO conical Reducing adaptor. |
KF Male Pipe Adaptor(NPT) Vacuum Adaptor parameters
Thread type:PT
| Model No. | Material | A | B | C | D | Tread |
| KF16MPT3 | 304S.S | 30 | 35 | 4.7 | 10 | 1/8''PT |
| KF16MPT6 | 304S.S | 30 | 35 | 7.1 | 14 | 1/4''PT |
| KF25MPT3 | 304S.S | 40 | 35 | 4.7 | 10 | 1/8''PT |
| KF25MPT6 | 304S.S | 40 | 35 | 7.1 | 14 | 1/4''PT |
| KF25MPT13 | 304S.S | 40 | 40 | 11.9 | 22 | 1/2''PT |
| KF25MPT19 | 304S.S | 40 | 40 | 15.9 | 27 | 3/4''PT |
| KF40MPT3 | 304S.S | 55 | 35 | 7.1 | 14 | 1/4''PT |
| KF40MPT6 | 304S.S | 55 | 40 | 11.9 | 22 | 1/2''PT |
| KF40MPT13 | 304S.S | 55 | 40 | 15.9 | 27 | 3/4''PT |
| KF40MPT19 | 304S.S | 55 | 45 | 22.2 | 36 | 1''PT |
| KF50MPT6 | 304S.S | 75 | 35 | 7.1 | 14 | 1/4''PT |
| KF50MPT13 | 304S.S | 75 | 40 | 11.9 | 22 | 1/2''PT |
| KF50MPT19 | 304S.S | 75 | 40 | 15.9 | 27 | 3/4''PT |
| KF50MPT25 | 304S.S | 75 | 45 | 22.2 | 36 | 1''PT |
Thread type:PT
| Model No. | Material | A | B | C | D | Tread |
| KF16MNPT3 | 304S.S | 30 | 35 | 4.7 | 10 | 1/8''NPT |
| KF16MNPT6 | 304S.S | 30 | 35 | 7.1 | 14 | 1/4''NPT |
| KF25MNPT3 | 304S.S | 40 | 35 | 4.7 | 10 | 1/8''NPT |
| KF25MNPT6 | 304S.S | 40 | 35 | 7.1 | 14 | 1/4''NPT |
| KF25MNPT13 | 304S.S | 40 | 40 | 11.9 | 22 | 1/2''NPT |
| KF25MNPT19 | 304S.S | 40 | 40 | 15.9 | 27 | 3/4''NPT |
| KF40MNPT3 | 304S.S | 55 | 35 | 7.1 | 14 | 1/4''NPT |
| KF40MNPT6 | 304S.S | 55 | 40 | 11.9 | 22 | 1/2''NPT |
| KF40MNPT13 | 304S.S | 55 | 40 | 15.9 | 27 | 3/4''NPT |
| KF40MNPT19 | 304S.S | 55 | 45 | 22.2 | 36 | 1''NPT |
| KF50MNPT6 | 304S.S | 75 | 35 | 7.1 | 14 | 1/4''NPT |
| KF50MNPT13 | 304S.S | 75 | 40 | 11.9 | 22 | 1/2''NPT |
| KF50MNPT19 | 304S.S | 75 | 40 | 15.9 | 27 | 3/4''NPT |
| KF50MNPT25 | 304S.S | 75 | 45 | 22.2 | 36 | 1''NPT |
Special Sizes Available Upon Request.
