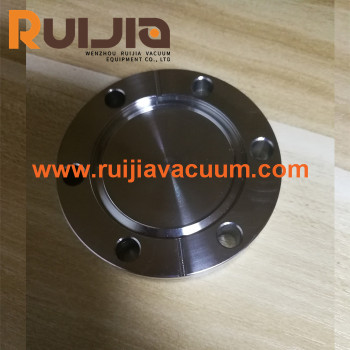

CF Vacuum Nonrotatable Blank Flanges Stainless Steel
group nameCF Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 29 Oct 2024 14:04:40 GMT
Paramtents
Product Name CF Vacuum Nonrotatable blank flanges
Size CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF300,CF350
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Packging & Delivery
Min Order1 piece
Briefing
Blank flanges, nonrotatable blank flanges, blank flange size is from CF16-CF350 with SS304/SS316L.Sealed with oxygen free copper gaskets, the effective vacuum degree can reach 1x-11 mbar. CF blank flanges temperature -200 ° C~800 ° C.
Detailed
CF Vacuum Nonrotatable Blank Flanges feature
● Used in the fields of physics, chemistry, and engineering research.
● Plastic flange protective cap is included to avoid flange scratching during transportation
●Precision machining, durable, high vacuum without side leakage
●CF vacuum flanges come in various sizes and shapes(Nonrotatable blank flange and tapped bolt holes,rotatable blank flange and tapped bolt holes) to accommodate different system configurations.
CF Vacuum Nonrotatable Blank Flanges specifications
|
Product Name
|
CF Vacuum Nonrotatable blank flanges Stainless Steel
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150,CF200,CF250,CF300,CF350. | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF Vacuum flange types
|
CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange
|
||
Product parameter
CF Vacuum Nonrotatable Blank Flanges Stainless Steel Unit:mm
|
Model No.
|
Material |
A
|
B |
C*No
|
P.C.D
|
|
CF16B
|
304SS/316SS |
33.8
|
7.5 |
4.4*6
|
26.9
|
|
CF35B
|
304SS/316SS |
69.5
|
12.7 |
6.7*6
|
58.7
|
CF63B | 304SS/316SS | 113.6 | 18 | 8.4*8 | 92.1 |
CF100B | 304SS/316SS | 151.6 | 20 | 8.4*16 | 130.3 |
CF150B | 304SS/316SS | 202.5 | 22 | 8.4*20 | 181 |
CF200B | 304SS/316SS | 253.2 | 24.7 | 8.4*24 | 231.8 |
CF250B | 304SS/316SS | 336.5 | 28.5 | 10.3*30 | 306.5 |
CF300B | 304SS/316SS | 355.6 | 28.5 | 10.3*30 | 325.7 |
CF350B | 304SS/316SS | 419.1 | 28.5 | 10.3*36 | 388.9 |
CF Vacuum Nonrotatable -Tapped Bolt Holes blank flanges Unit:mm
| Model No. | Material | A | B | C*No | P.C.D |
| CF16BTAP | 304SS/316SS | 33.8 | 7.5 | M4*6 | 26.9 |
| CF35BTAP | 304SS/316SS | 69.5 | 12.7 | M6*6 | 58.7 |
| CF63BTAP | 304SS/316SS | 113.6 | 18 | M8*8 | 92.1 |
| CF100BTAP | 304SS/316SS | 151.6 | 20 | M8*16 | 130.3 |
| CF150BTAP | 304SS/316SS | 202.5 | 22 | M8*20 | 181 |
| CF200BTAP | 304SS/316SS | 253.2 | 24.7 | M8*24 | 231.8 |
| CF250BTAP | 304SS/316SS | 336.5 | 28.5 | M10*30 | 306.5 |
| CF300BTAP | 304SS/316SS | 355.6 | 28.5 | M10*30 | 325.7 |
| CF350BTAP | 304SS/316SS | 419.1 | 28.5 | M10*36 | 388.9 |
CF rotatable blank flange Unit:mm
| Model No. | Material | A | B | C*No | P.C.D |
| CR16B | 304SS/316SS | 33.8 | 7.5 | 4.4*6 | 26.9 |
| CR35B | 304SS/316SS | 69.5 | 12.7 | 6.7*6 | 58.7 |
| CR63B | 304SS/316SS | 113.6 | 18 | 8.4*8 | 92.1 |
| CR100B | 304SS/316SS | 151.6 | 20 | 8.4*16 | 130.3 |
| CR150B | 304SS/316SS | 202.5 | 22 | 8.4*20 | 181 |
| CR200B | 304SS/316SS | 253.2 | 24.7 | 8.4*24 | 231.8 |
| CR250B | 304SS/316SS | 336.5 | 28.5 | 10.3*30 | 306.5 |
| CR300B | 304SS/316SS | 355.6 | 28.5 | 10.3*30 | 325.7 |
| CR350B | 304SS/316SS | 419.1 | 28.5 | 10.3*36 | 388.9 |
CF Vacuum rotatable -Tapped Bolt Holes blank flanges Unit:mm
| Model No. | Material | A | B | C*No | P.C.D |
| CR16BTAP | 304SS/316SS | 33.8 | 7.5 | M4*6 | 26.9 |
| CR35BTAP | 304SS/316SS | 69.5 | 12.7 | M6*6 | 58.7 |
| CR63BTAP | 304SS/316SS | 113.6 | 18 | M8*8 | 92.1 |
| CR100BTAP | 304SS/316SS | 151.6 | 20 | M8*16 | 130.3 |
| CR150BTAP | 304SS/316SS | 202.5 | 22 | M8*20 | 181 |
| CR200BTAP | 304SS/316SS | 253.2 | 24.7 | M8*24 | 231.8 |
| CR250BTAP | 304SS/316SS | 336.5 | 28.5 | M10*30 | 306.5 |
| CR300BTAP | 304SS/316SS | 355.6 | 28.5 | M10*30 | 325.7 |
| CR350BTAP | 304SS/316SS | 419.1 | 28.5 | M10*36 | 388.9 |
Special Sizes Available Upon Request.
Assembly Instructions for CF Flanges
1.Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edege counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
