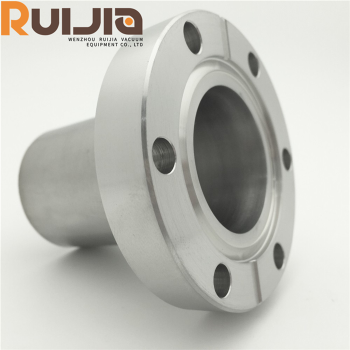

Product Name CF Flanges Fittings Half Nipple Rotatable
Brand RUIJIA
Size CF16-CF200
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Packging & Delivery
Min Order1 piece
Briefing
Half Nipple,Rotatable Half Nipple, the size range is CF16-CF200 with the material of SS304/SS316.Half nipples is used in half vacuum systems.
Detailed
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China feature
● CF vacuum half nipple rotatable are mainly used in ultra-high vacuum systems,
A series of tests are required before shipment, including vacuum sealing testing, dimensional accuracy testing, etc., to ensure the quality and performance of the joints.
● The packaging before shipment usually uses anti-static packaging to protect the joints from static electricity damage.
● When assembled and used, CF vacuum half nipple are usually connected by metal sealing to ensure the vacuum degree and sealing of the system.
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China specifications
|
Product Name
|
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China
|
||
Brand | RUIJIA | ||
Size | CF16-CF200 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF Vacuum flange types
|
CF Vacuum bored flange nonrotatable,CF Vacuum bored flange nonrotatable-tapped bolt holes,CF Vacuum bored flange Rotatable,CF Vacuum bored flange rotatable-tapped bolt holes,CF Reducing flange
|
||
Product parameters
CF Flanges Fittings Half Nipple Vacuum CF Flanges Nipples China Unit:mm
| Model No. | Material | Inch spec | A | B | C |
| CR16HN | S.S.304 | 1-1/3" | 33.8 | 38 | 19.05 |
| CR35HN | S.S.304 | 2-3/4" | 69.5 | 63 | 38.1 |
| CR63HN | S.S.304 | 4-1/2" | 113.6 | 105 | 63.5 |
| CR100HN | S.S.304 | 6" | 151.6 | 135 | 101.6 |
| CR150HN | S.S.304 | 8" | 202.5 | 167 | 152.4 |
| CR200HN | S.S.304 | 10" | 253.2 | 167 | 203.2 |
Special Sizes Available Upon Request.
Assembly Instructions for CF Flanges
1.Apply a small amount of high temperature anti-seize compound to the bolt threads.
2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.
3. Using clean, lint free gloves, unpack gasket.
4. Place gasket in the knife edege counterbore of nonrotatable flange.
5. Align the mating hole pattern and leak test grooves.
6. Install the proper bolts and tighten had tight. Check to see that the flange faces are parallel.
7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.
