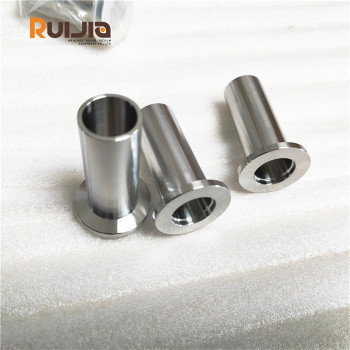

KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China
group nameKF/NW Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 29 Oct 2024 13:58:34 GMT
Paramtents
Size KF16-KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Half nipples,KF,long,is a convenient joint for quickly connecting vacuum pipelines, KF half nipples usually made of stainless steel 304 material. The specifications of KF vacuum nipples include KF10, KF16, KF25, KF40, KF50, etc.
Detailed
KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China feature
● Mainly used in high-tech industries such as semiconductor manufacturing, defense research, aerospace, biopharmaceuticals, LCD displays, photovoltaics, and solar energy. and KF vacuum interfaces have become an important choice in these fields due to their precise size, simple structure, and compact advantages.
●Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
●When assembled and used, KF vacuum joints are usually combined with vacuum clamp heads, center brackets, vacuum blind plates, and other accessories. They can also be used in conjunction with vacuum valves, vacuum tees, vacuum elbows, etc.
KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China specifications
|
Product Name
|
KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16-KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Surface
|
Sand Blasting or Polished Surface
|
||
Product parameters
KF Half Nipple for long Vacuum flanges Fittings KF16-KF50 Wholesale China Unit:mm
| Model No. | Material | A | B | C | Available Area |
| KF10LHNSA | S.S.304 | 30 | 12.7 | 40 | U.S.A |
| KF16LHNSA | S.S.304 | 30 | 19.05 | 40 | U.S.A |
| KF25LHNSA | S.S.304 | 40 | 25.4 | 40 | U.S.A |
| KF40LHNSA | S.S.304 | 55 | 38.1 | 40 | U.S.A |
| KF50LHNSA | S.S.304 | 75 | 50.8 | 40 | U.S.A |
| KF10LHNAA | S.S.304 | 30 | 12.7 | 40 | U.S.A |
| KF16LHNAA | S.S.304 | 30 | 19.05 | 40 | U.S.A |
| KF25LHNAA | S.S.304 | 40 | 25.4 | 40 | U.S.A |
| KF40LHNAA | S.S.304 | 55 | 38.1 | 40 | U.S.A |
| KF50LHNAA | S.S.304 | 75 | 50.8 | 40 | U.S.A |
| KF10LHNSE | S.S.304 | 30 | 14 | 70 | Europe |
| KF16LHNSE | S.S.304 | 30 | 20 | 70 | Europe |
| KF25LHNSE | S.S.304 | 40 | 28 | 70 | Europe |
| KF40LHNSE | S.S.304 | 55 | 45 | 70 | Europe |
| KF50LHNSE | S.S.304 | 75 | 57 | 70 | Europe |
| KF50LHNSJ | S.S.304 | 75 | 60.5 | 40 | Japan |
Special Sizes Available Upon Request.
Production Center
Application
Applications for this system are as varied as the imagination can make them.
Some examples are:
*Roughing and foreline plumbing for large vacuum system.
*High vacuum, high conductance, inter-connections.
*Modular system which will be modified frequently.
*System requiring frequent cleaning.
*Experimental system in research laboratories.
