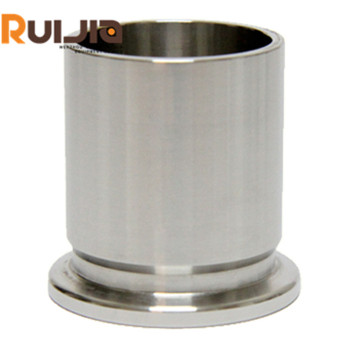

Vacuum Component Flange Fittings KF Nipple long for JIS Pipe Stainless Steel Wholesale China
group nameKF/NW Vacuum Flanges
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 29 Oct 2024 13:57:40 GMT
Paramtents
Size KF25-KF40
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard flange
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
Half nipple JIS pipe is used to convenient joint for quickly connecting vacuum pipelines,KF half nipples usually made of stainless steel 304 material.
Detailed
Vacuum Component Flange Fittings KF Nipple long for JIS Pipe Stainless Steel Wholesale China feature
●KF vacuum joints are mainly used in high-tech industries and solar energy. These industries have extremely high requirements for the accuracy and reliability of equipment.
●Before delivery, the packaging of KF vacuum connector usually includes the use of appropriate packaging materials, such as shockproof foam, plastic bags or cartons, to ensure that the connector will not be damaged during transportation.
●When assembled and used, KF vacuum joints are usually combined with vacuum valves, vacuum tees, vacuum elbows, etc. to meet the needs of different customers
Vacuum Component Flange Fittings KF Nipple long for JIS Pipe Stainless Steel Wholesale China specifications
|
Product Name
|
Vacuum Component Flange Fittings KF Nipple long for JIS Pipe Stainless Steel Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF25-KF40 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Surface
|
Sand Blasting or Polished Surface
|
||
Product parameters
Vacuum Component Flange Fittings KF Nipple long for JIS Pipe Stainless Steel Wholesale China Unit:mm
| Model No. | Material | A | B | C | D | Available Area |
| KF25LHNSJ | S.S.304 | 40 | 34 | 40 | 32 | Japan |
| KF40LHNSJ | S.S.304 | 55 | 48.6 | 40 | 45 | Japan |
Special Sizes Available Upon Request.
Production Center
Application
Applications for this system are as varied as the imagination can make them.
Some examples are:
*Roughing and foreline plumbing for large vacuum system.
*High vacuum, high conductance, inter-connections.
*Modular system which will be modified frequently.
*System requiring frequent cleaning.
*Experimental system in research laboratories.
