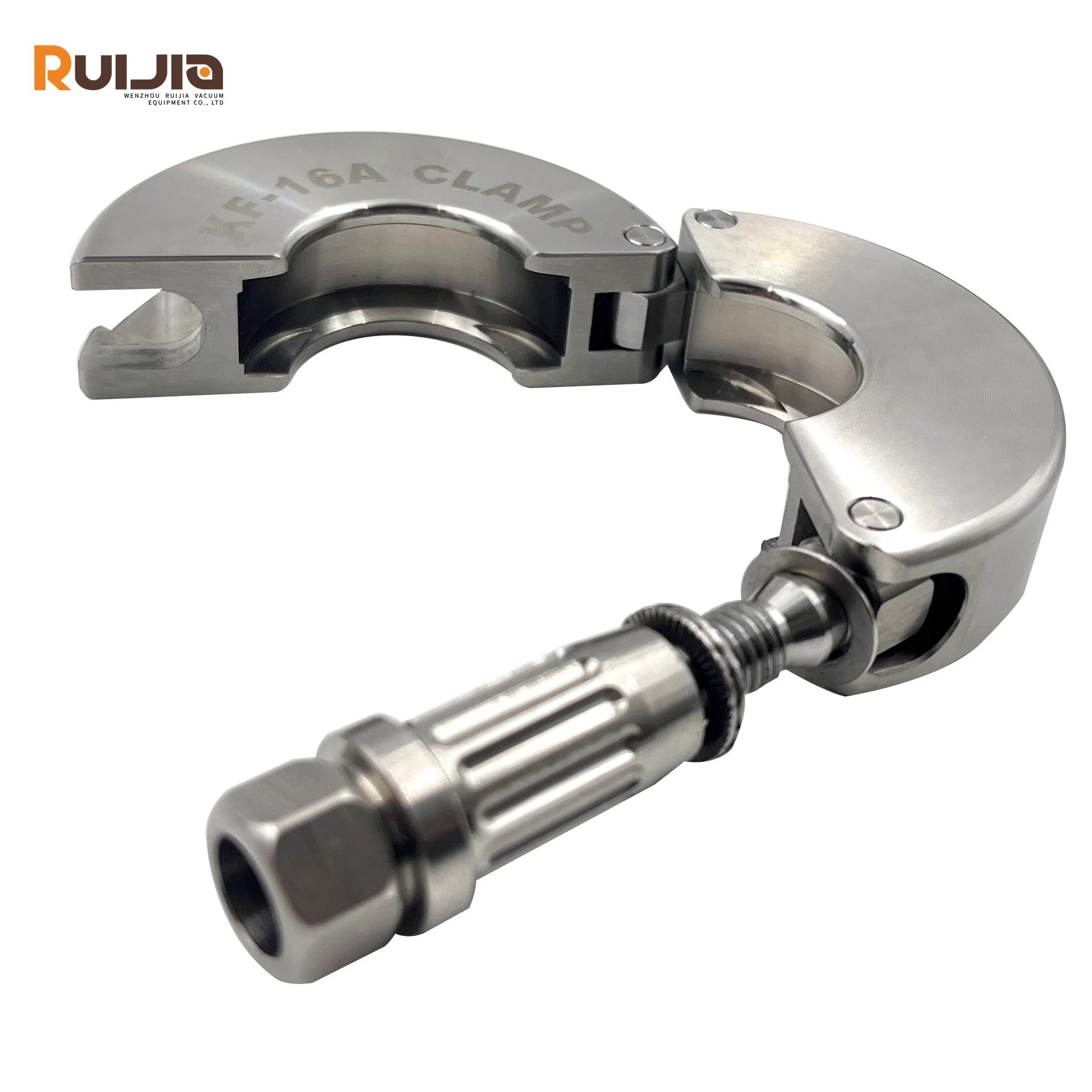

KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 30 Oct 2024 14:43:04 GMT
Paramtents
Size KF16,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
Flange clamps,KF,Vacuum quick loading clamps is used in combination with vacuum Flange,vacuum valves,vacuum fittings to meet different customer needs and achieve ideal results.
Detailed
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China feature
●Used in high-tech industries such as semiconductor manufacturing,national defense research,aerospace,bio pharmaceutical,LCD,etc.
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
●the Size is from KF16-KF50,if you need other size,we can provide according to your request.
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China specifications
|
Product Name
|
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L, 6061T6 Alu | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Flange Fittings KF Vacuum Clamps Flange Quick Loading Clamps,Stainless Steel,Wholesale China Unit:mm
| Size | Material | A | B | C |
| KF16 | SS304 | 22.3 | 63.3 | 17.3 |
| KF25 | SS304 | 32.3 | 63.3 | 17.3 |
| KF40 | SS304 | 46.5 | 83.5 | 17.3 |
| KF50 | SS304 | 67.5 | 104.3 | 17.3 |
Special Sizes Available Upon Request.
