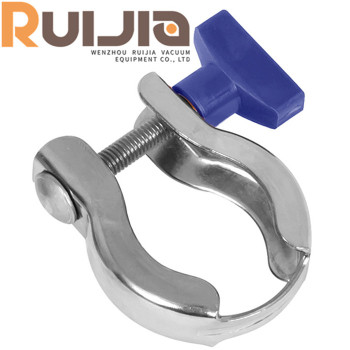

KF Vacuum Spring clamps with plastic nut,Light,Low cost and without assembly space limit.
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 30 Oct 2024 15:01:12 GMT
Paramtents
Size KF10,KF16,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Standard KF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF spring clamp,KF clamps plastic nut,KF spring clamps could change fasten nut on request.Clamps is made of stainless steel.
Detailed
KF Vacuum Spring clamps with plastic nut,Light,Low cost and without assembly space limit feature
●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
●Before shipment, vacuum clamps need to undergo clamp testing, including but not limited to elastic clamps, fire clamps, water pipe clamps, etc., to ensure that their quality and performance meet standards.
● Often made from materials that can withstand vacuum conditions without out grassing, such as stainless steel or aluminium.
KF Vacuum Spring clamps with plastic nut,Light,Low cost and without assembly space limit.specifications
|
Product Name
|
KF Vacuum Spring clamps with plastic nut,Light,Low cost and without assembly space limit.
|
||
Brand | RUIJIA | ||
Size | KF10,KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Vacuum Spring clamps with plastic nut,Light,Low cost and without assembly space limit. Unit:mm
| Model No. | Material | A | B | C |
| KF10SCLSW | 304S.S. | 55 | 54 | 40 |
| KF16SCLSW | 304S.S. | 55 | 54 | 40 |
| KF25SCLSW | 304S.S. | 63 | 62 | 48 |
| KF40SCLSW | 304S.S. | 77 | 76 | 62 |
| KF50SCLSW | 304S.S. | 96 | 99 | 84 |
Special Sizes Available Upon Request.
