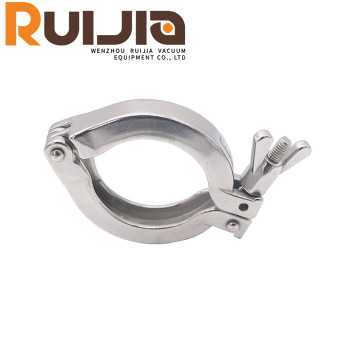

KF Vacuum Clamps Stainless Steel Single Pin Clamps Vacuum Atmosphere Pressure Wholesale China
group nameKF Vacuum Clamps
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOSALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeThu, 31 Oct 2024 10:35:07 GMT
Paramtents
Size KF16,KF25,KF40,KF50.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF single pin clamps,Stainless steel clamps singe pin,resist corrosion,making them ideal for outdoor applications or those exposed to moisture or chemicals.
Detailed
KF Vacuum Clamps Stainless Steel Single Pin Clamps Vacuum Atmosphere Pressure Wholesale China Feature
●used in manufacturing or engineering processes where precise positioning is required under vacuum conditions..
● Through advanced casting technology, the blank is precision cast and then subjected to vibration light treatment before assembly. After assembly, perform secondary polishing treatment and finally package for sale
●Leakage or pinhole detection, perforation resistance detection: Use dye immersion method and drop detection method to check the perforation resistance of packaging bags.
KF Vacuum Clamps Stainless Steel Single Pin Clamps Vacuum Atmosphere Pressure Wholesale China Specifications
|
Product Name
|
KF Vacuum Clamps Stainless Steel Single Pin Clamps Vacuum Atmosphere Pressure Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
KF Vacuum clamp types
|
KF bulkhead clamp,KF spring clamp with plastic nut,KF spring clamp with wing nut,KF toggle clamp with lock,KF chain clamp(KF16-63),KF chain clamp(KF80-200)
|
||
Product parameters
KF Vacuum Clamps Stainless Steel Single Pin Clamps Vacuum Atmosphere Pressure Wholesale China Unit:mm
| Model No. | Material | A | B | C |
| KF16CL-304 | 304S.S. | 59.5 | 36 | 15.5 |
| KF25CL-304 | 304S.S. | 73.5 | 49 | 15.5 |
| KF40CL-304 | 304S.S. | 90 | 64 | 16 |
| KF50CL-304 | 304S.S. | 112 | 82 | 20 |
Special Sizes Available Upon Request.
