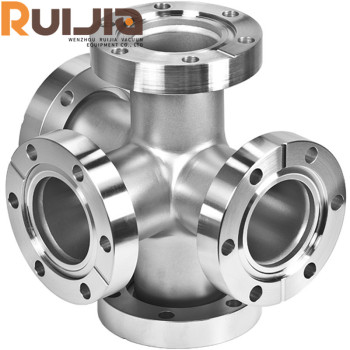

CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China
group nameCF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 04 Nov 2024 13:29:41 GMT
Paramtents
Size CF16,CF35,CF63,CF100,CF150
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
CF five way crosses,vacuum fittings rotatable is mainly suitable for ultra-high vacuum systems, ensuring sealing effect through metal sealing, available size to accommodate vacuum pipes of different diameters.
Detailed
CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China feature
●Mainly used in ultra-high vacuum systems. The connection method of 5 way crosses-fixed is suitable for applications that require high temperature baking. Its nominal diameter sizes include CF16, CF35, CF63, CF100, CF150..
●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation
●High pressure system air tightness, low pressure system air tightness testing, quantitative oxygen supply, exhaust pressure testing, and automatic supply pressure testing, etc
CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China specifications
|
Product Name
|
CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flanges Fittings 5-Way Crosses- Three Flange Rotatable Wholesale China Unit:mm
| Model No. | Material | A | B | C | D |
| CR16FXA | 304S.S | 47.2 | 19.05 | 33.8 | 94.4 |
| CR35FXA | 304S.S | 62.5 | 38.1 | 69.5 | 125 |
| CR63FXA | 304S.S | 85.7 | 63.5 | 113.6 | 171.4 |
| CR100FXA | 304S.S | 109.5 | 101.6 | 151.6 | 219 |
| CR150FXA | 304S.S | 139.7 | 152.4 | 202.5 | 279.4 |
Special Sizes Available Upon Request.
