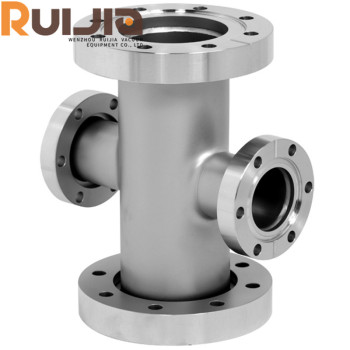

CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture
group nameCF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeMon, 04 Nov 2024 14:36:27 GMT
Paramtents
Size CF-RT-275×133,CF-RT-275×212,CF-RT-338×133,etc
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
CF reducing 4 way crosses are a type of connector used in high vacuum system, featuring a rotatable elbow design that makes the connection more flexible and convenient.
Detailed
CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture feature
●This type of accessory has a wide range of applications, including but not limited to scientific research, industrial production, laboratory equipment, and other fields.
●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation
●Testing:Appearance inspection, size inspection, sealing performance testing
●Finish:polish surface or sand blasting surface.
CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture specifications
|
Product Name
|
CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture
|
||
Brand | RUIJIA | ||
Size | CF-RT-275×133,CF-RT-275×212,CF-RT-338×133,etc | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flanges Fittings & Component 4 way Reducing Crosses China Manufacture Unit:mm
| Model No. | Flange Size | A | B |
| CF-RT-275×133 | CF 2.75''/1.33'' | 62.5 | 47.5 |
| CF-RT-275×212 | CF2.75''/2.12'' | 62.5 | 58.2 |
| CF-RT-338×133 | CF3.38''/1.33'' | 81.8 | 54.1 |
| CF-RT-338×275 | CF3.38''/2.75'' | 81.8 | 68.8 |
| CF-RT-450×275 | CF4.5''/2.75'' | 85.9 | 75.2 |
| CF-RT-450×338 | CF4.5''/3.38'' | 85.9 | 88.4 |
| CF-RT-462×338 | CF4.62''/3.8'' | 89.7 | 94.7 |
| CF-RT-462×450 | CF4.62''/4.5'' | 89.7 | 92.2 |
| CF-RT-600×275 | CF6.00''/2.75'' | 109.7 | 94.2 |
| CF-RT-600×338 | CF6.00''/3.38'' | 109.7 | 107.4 |
| CF-RT-600×450 | CF6.00''/4.5'' | 109.7 | 104.9 |
| CF-RT-600×462 | CF6.00''/4.62'' | 109.7 | 104.9 |
Special Sizes Available Upon Request.
