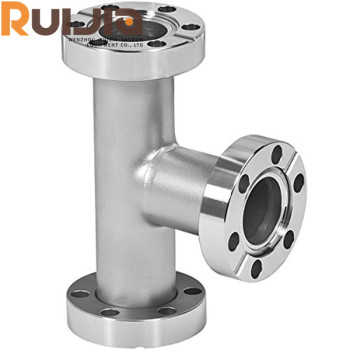

CF Vacuum Flange Fittings Tees-Two Flange Rotatable Stainless Steel Wholesale China
group nameCF Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 05 Nov 2024 10:02:21 GMT
Paramtents
Size CF16,CF35,CF63,CF100,CF150
Material SS304, SS316L
Seal material Oxygen free copper, silver plated copper
Standard CF Standard
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
CF fittings,CF vacuum Tees,rotatable Tees two flange has become an indispensable component in these fields due to its excellent sealing performance and flexible connection method.
Detailed
CF Vacuum Flange Fittings Tees-Two Flange Rotatable Stainless Steel Wholesale China Feature
●Applied in industries, laboratory equipment, scientific research instruments, medical equipment and other fields, it ensures the stable operation and efficient work of the system.
●Packaging method: Special packaging materials are usually used for protection. During packaging, anti-static materials and foam packaging will be used to reduce the damage to products caused by vibration and collision during transportation
●Testing:Appearance inspection, size inspection, sealing performance testing
CF Vacuum Flange Fittings Tees-Two Flange Rotatable Stainless Steel Wholesale China Specifications
|
Product Name
|
CF Vacuum Flange Fittings Tees-Two Flange Rotatable Stainless Steel Wholesale China
|
||
Brand | RUIJIA | ||
Size | CF16,CF35,CF63,CF100,CF150 | ||
Material | SS304, SS316L | ||
Seal material | Oxygen free copper, silver plated copper | ||
Standard | CF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
CF flange fittings types
|
CF 90 degree Elbow fixed,CF 90 degree Elbow Rotatable,CF Tees fixed,CF Tees-Two Flange Rotatable,CF 4 way crosses fixed,CF Five way Crosses Fixed, CF six way crosses fixed,CF Cubes with Fractional thread.
|
||
Product parameters
CF Vacuum Flange Fittings Tees-Two Flange Rotatable Stainless Steel Wholesale China Unit:mm
| Model No. | Material | A | B | C | D |
| CR16T | 304S.S | 47.2 | 19.05 | 33.8 | 94.4 |
| CR35T | 304S.S | 62.5 | 38.1 | 69.5 | 125 |
| CR63T | 304S.S | 85.7 | 63.5 | 113.6 | 171.4 |
| CR100T | 304S.S | 109.5 | 101.6 | 151.6 | 219 |
| CR150T | 304S.S | 139.7 | 152.4 | 202.5 | 279.4 |
Special Sizes Available Upon Request.
