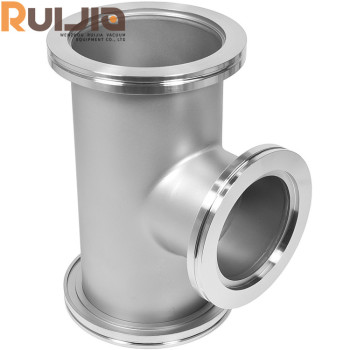

ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China
group nameISO-K Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 05 Nov 2024 13:51:31 GMT
Paramtents
Size ISO63,ISO80,ISO100,ISO160
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
Vacuum Fittings Crosses includes four-way,five-way,six-way,reducing crosses to change size within the connector flanges.
Detailed
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Feature
●Application：Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.
●Finish:polish surface or sand blasting surface.
●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Specifications
|
Product Name
|
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China
|
||
Brand | RUIJIA | ||
Size | ISO63,ISO80,ISO100,ISO160 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO flange fittings types
|
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.
|
||
Product parameters
ISO Flanges and Fittings,ISO Stainless Steel Fittings reducing Tee/ 3 way Crosses Wholesale China Unit:mm
| Model No. | Size | A | B |
| ISOK-RT-80×63 | ISO80×ISO63 | 177.7 | 88.9 |
| ISOK-RT-100×63 | ISO100×ISO63 | 209.7 | 101.6 |
| ISOK-RT-100×80 | ISO100×ISO80 | 209.7 | 101.6 |
| ISOK-RT-160×63 | ISO160×ISO63 | 266.6 | 126.9 |
| ISOK-RT-160×80 | ISO160×ISO80 | 266.6 | 126.9 |
| ISOK-RT-160×100 | ISO160×ISO100 | 266.6 | 130.3 |
Special Sizes Available Upon Request.
