ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings 6-Way Crosses Wholesale China
group nameISO-K Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 05 Nov 2024 14:31:03 GMT
Paramtents
Size ISO63,ISO80,ISO100,ISO160
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing

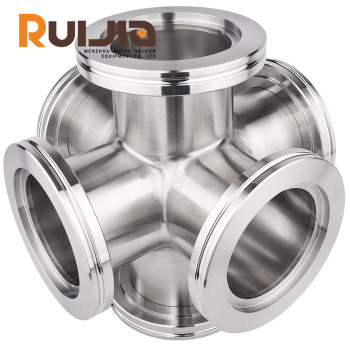

ISO 6-way crosses, ISO vacuum fittings,stainless steel, ISO 6 Way Crosses Fixed are used to bring in four branch lines of the same size into a main line.
Detailed
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings 6-Way Crosses Wholesale China feature
●Application ：Mainly application areas include but are not limited to scientific research, semiconductor manufacturing, and other industrial fields that require high purity and high vacuum.
● Packaging methods: including bubble wrap packaging, anti-static packaging bags
●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing,
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings 6-Way Crosses Wholesale China specifications
|
Product Name
|
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings 6-Way Crosses Wholesale China
|
||
Brand | RUIJIA | ||
Size | ISO63,ISO80,ISO100,ISO160 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO flange fittings types
|
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.
|
||
Product parameters
ISO Vacuum Flange Stainless Steel Component,Vacuum Fittings 6-Way Crosses Wholesale China Unit:mm
| Model No. | Material | A | B | C | D |
| ISO63SXA | 304S.S | 82.8 | 63.5 | 95 | 165.6 |
| ISO80SXA | 304S.S | 89.15 | 76.2 | 110 | 178.3 |
| ISO100SXA | 304S.S | 105 | 101.6 | 130 | 210 |
| ISO160SXA | 304S.S | 133.6 | 152.4 | 180 | 267.2 |
Special Sizes Available Upon Request.
