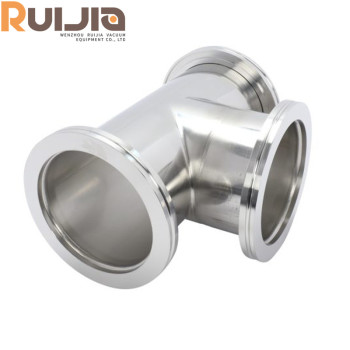

ISO Vacuum Flanges and Fittings,Stainless Steel Vacuum Fittings Tees Wholesale China
group nameISO-K Vacuum Fittings
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeTue, 05 Nov 2024 14:48:01 GMT
Paramtents
Size ISO63,ISO80,ISO100,ISO160
Seal material Viton,Silicone,Buna-N seal
Standard ISO Standard
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
Equal Tees,ISO equal Tees,ISO flange fittings Tees for vacuum system design and used as junction adapters between different tubing sizes or flange types.
Detailed
ISO Vacuum Flanges and Fittings,Stainless Steel Vacuum Fittings Tees Wholesale China Feature
●Application：Applied to high vacuum and ultra-high vacuum systems that require cleaning and corrosion resistance. This three-way design and material selection ensure its reliability and durability in extreme environments.
●Finish:polish surface or sand blasting surface.
●Testing：the testing items for vacuum pipe fittings include appearance quality testing, dimensional accuracy testing, material performance testing, pressure testing, sealing testing, and corrosion resistance testing.
ISO Vacuum Flanges and Fittings,Stainless Steel Vacuum Fittings Tees Wholesale China Specifications
|
Product Name
|
ISO Vacuum Flanges and Fittings,Stainless Steel Vacuum Fittings Tees Wholesale China
|
||
Brand | RUIJIA | ||
Size | ISO63,ISO80,ISO100,ISO160 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | ISO Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
ISO flange fittings types
|
ISO 90 degree elbow,ISO Tees, ISO 4-way crosses,ISO five-way crosses, ISO six-way crosses.
|
||
Product parameters
ISO Vacuum Flanges and Fittings,Stainless Steel Vacuum Fittings Tees Wholesale China Unit:mm
| Model No. | Material | A | B | C | D |
| ISO63TA | 304S.S | 82.8 | 63.5 | 95 | 165.6 |
| ISO80TA | 304S.S | 89.15 | 76.2 | 110 | 178.3 |
| ISO100TA | 304S.S | 105 | 101.6 | 130 | 210 |
| ISO160TA | 304S.S | 133.6 | 152.4 | 180 | 267.2 |
Special Sizes Available Upon Request.
