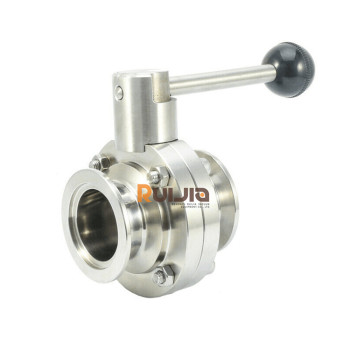

KF Type Manual Butterfly Valves,Stainless Steel for High Vacuum System
group nameVacuum Butterfly Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 06 Nov 2024 09:46:02 GMT
Paramtents
Size KF25,KF40,KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF Vacuum Valves,Vacuum butterfly valves,Size ranges:KF25-KF50.Valves material:Stainless steel.Can provide many sizes according to KF standards to meet practical application scenarios.
Detailed
KF Type Manual Butterfly Valves,Stainless Steel for High Vacuum System feature
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:Depending on specific application requirements and design specifications
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF Type Manual Butterfly Valves,Stainless Steel for High Vacuum System specifications
|
Product Name
|
KF Type Manual Butterfly Valves,Stainless Steel for High Vacuum System
|
||
Brand | RUIJIA | ||
Size | KF25,KF40,KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Type Manual Butterfly Valves,Stainless Steel for High Vacuum System Unit:mm
| Model No. | Size | Connector | A | B | C | D | E |
| KF25BFV | 1'' | KF25 | 75.6 | 80 | 179 | 79 | 119.5 |
| KF40BFV | 1.5'' | KF40 | 83.6 | 83.3 | 186.8 | 85 | 125.5 |
| KF50BFV | 2'' | KF50 | 87.6 | 93.3 | 185 | 105 | 145.5 |
Special Sizes Available Upon Request.
