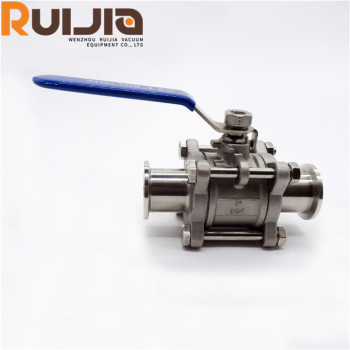

KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China
group nameVacuum Ball Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 06 Nov 2024 10:01:51 GMT
Paramtents
Size KF10-KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF Vacuum valves,Quick-loading,three pieces,Ball valves is made out of stainless steel and used to connect or cut off the flow of media in vacuum system pipelines.
Detailed
KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Feature
●Application: Vacuum ball valves are used to control the flow of media, ensuring the vacuum degree and work efficiency of the system.
●Size:the size and specifications of ball valves include nominal diameter (DN), external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Specifications
|
Product Name
|
KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF10-KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF 3-Pieces 2 Way Ball Valves Vacuum Quick-Loading Ball Valve for High Vacuum System Wholesale China Unit:mm
| Size | D | Dn | L | K | H |
| KF10 | 30 | 9.4 | 89 | 130 | 38 |
| KF16 | 30 | 15.8 | 92 | 130 | 42.5 |
| KF25 | 40 | 22.1 | 107 | 165 | 52.5 |
| KF40 | 55 | 34.8 | 130 | 215 | 73 |
| KF50 | 75 | 47.5 | 151 | 215 | 78.5 |
Special Sizes Available Upon Request.
