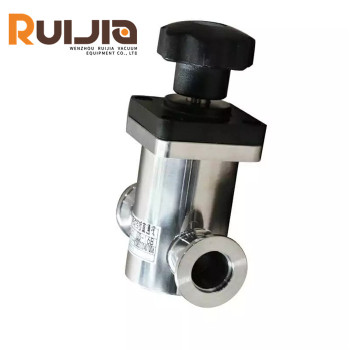

High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
group nameVacuum Angle valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union
-
update timeWed, 06 Nov 2024 11:02:43 GMT
Paramtents
Size KF16-KF25-KF40-KF50.
Material SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF Angle valves,straight,manual,Vacuum angle valves is applied in covering multiple high-tech industries. Its testing standards are strict, and the size can be customized.
Detailed
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields feature
●Application:Used in high-tech fields such as semiconductor industry, flat panel display manufacturing, solar technology, vacuum coating, and other high-performance vacuum systems and research institutions.
●Size:Customize according to specific application requirements. This includes the diameter, length, and other relevant dimensional parameters of the valve
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions.
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields specifications
|
Product Name
|
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields
|
||
Brand | RUIJIA | ||
Size | KF16-KF25-KF40-KF50. | ||
Material | SS304, SS316L, 6061T6 Alu, EN1.4301, EN1.4404 | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
Special Sizes Available Upon Request.
High Vacuum Manual Straight Angle Valve KF16-KF50 for High-Tech Fields Unit:mm
| Model No. | DN | OVERALL DIMENSIONS | |||||||||||||
| A | A1 | B | C | C1 | D | D1 | E | E1 | F | G | G1 | H | H1 | ||
| EVGD-16B(KF)S EVGD-16(KF)S | 16 | 105 | 82 | 16 | 80 | 80 | 51 | 38 | 51 | 34 | 40 | 28 | 28 | 16 | 100 |
| EVGD-25B(KF)S EVGD-25(KF)S | 25 | 132 | 109 | 25 | 90 | 100 | 69 | 58 | 58 | 47 | 50 | 40 | 46 | 21 | 128 |
| EVGD-40B(KF)S EVGD-40(KF)S | 40 | 171 | 127 | 40 | 120 | 130 | 82 | 65 | 86 | 58 | 63 | 50 | 52 | 26 | 153 |
| EVGD-50B(KF)S EVGD-50(KF)S | 50 | 207 | 144 | 50 | 130 | 140 | 92 | 73 | 92 | 74 | 63 | 80 | 60 | 39 | 178 |
Special Sizes available Upon Request.
