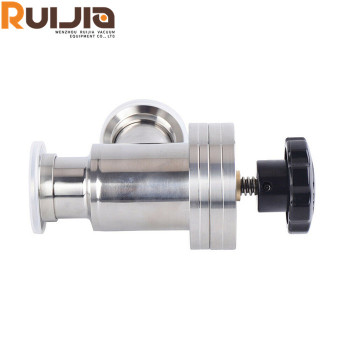

KF Vacuum Manual Angle Valve SS304 Commonly Used for Vacuum System Wholesale China
group nameVacuum Angle valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 06 Nov 2024 11:23:27 GMT
Paramtents
Size KF16,KF25,KF40,KF50.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
Vacuum Angle valves,manual angle valves main to play an important role to control of fluid flow direction and pressure is required.
Detailed
KF Vacuum Manual Angle Valve SS304 Commonly Used for Vacuum System Wholesale China feature
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:Depending on specific application requirements and design specifications
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF Vacuum Manual Angle Valve SS304 Commonly Used for Vacuum System Wholesale China specifications
|
Product Name
|
KF Vacuum Manual Angle Valve SS304 Commonly Used for Vacuum System Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Vacuum Manual Angle Valve SS304 Commonly Used for Vacuum System Wholesale China Unit:mm
| Model No. | O.D | A | B | C | D | Figure |
| AVB-KF16-M | 0.75 | 2.15 | 5.25 | 6 | 2.24 | 2 |
| AVB-KF25-M | 1 | 2.03 | 4.97 | 5.7 | 2.24 | 2 |
| AVB-KF40-M | 1.5 | 2.4 | 6.28 | 7 1/2 | 2.98 | 2 |
| AVB-KF50-M | 2 | 3.4 | 8 | 9.76 | 3.48 | 2 |
Special Sizes Available Upon Request.
