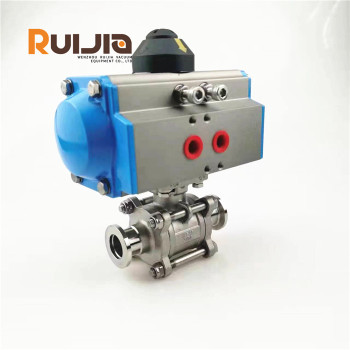

KF Vacuum Pneumatic Ball Valves Actuated Stainless steel 304 Wholesale China
group nameVacuum Ball Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 06 Nov 2024 12:57:39 GMT
Paramtents
Size KF25,KF40,KF50.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Working Pressure Vacuum~atmosphere pressure
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
Pneumatic,Vacuum valves,Ball valves,stainless steel,vacuum ball valves used for fluid interception, regulation, and flow control, meeting fluid control requirements under various working conditions.
Detailed
KF Vacuum Pneumatic Ball Valves Actuated Stainless steel 304 Wholesale China Feature
●Application:Used for fluid interception, regulation, and flow control, meeting fluid control requirements under various working conditions
●KF flange ball valve Type:manual Type/Pneumatic type/Electric Actuator type,we can provide according to the requirement.
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF Vacuum Pneumatic Ball Valves Actuated Stainless steel 304 Wholesale China Specifications
|
Product Name
|
KF Vacuum Pneumatic Ball Valves Actuated Stainless steel 304 Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF25,KF40,KF50. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Vacuum Pneumatic Ball Valves Actuated Stainless steel 304 Wholesale China Unit:mm
| Model No. | Size | Connector | A | B | C | D |
| KF25BV107P | 1'' | KF25 | 173 | 107 | 71 | 41.5 |
| KF40BV130P | 1.5'' | KF40 | 216 | 130 | 88 | 48 |
| KF50BV151P | 2'' | KF50 | 246 | 151 | 99 | 51.5 |
KF Vacuum Electric Ball Valves Actuated Stainless steel 304 Wholesale China Unit:mm
| Model No. | Size | Connector | A | B | C | D |
| KF25BV107E | 1'' | KF25 | 231 | 107 | 114 | 79 |
| KF40BV130E | 1.5'' | KF40 | 258 | 130 | 119 | 79 |
| KF50BV151E | 2'' | KF50 | 318 | 151 | 114 | 57 |
Special Sizes Available Upon Request.
