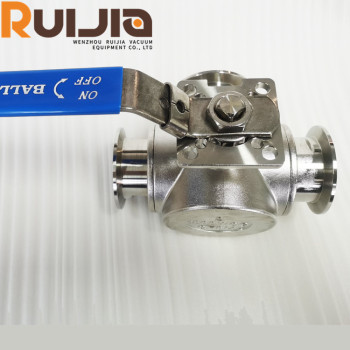

KF High Vacuum Ball Valves,3-Way Manual Ball valves for Vacuum System Wholesale China
group nameVacuum Ball Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 06 Nov 2024 13:16:26 GMT
Paramtents
Size KF25,KF40,KF50.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packing sealed plastic bag with a protective plastic cap.
Packging & Delivery
Min Order1 piece
Briefing
Three way ball valves,Vacuum ball valves,the feature is able to switch the direction of medium flow. By adjusting the rotation angle of the valve stem, the opening of the valve channel can be controlled, thereby achieving control over the direction of medium flow.
Detailed
KF High Vacuum Ball Valves,3-Way Manual Ball valves for Vacuum System Wholesale China Feature
●Application:Used in situations where it is necessary to change the flow direction of the medium or cut off the flow of the medium, such as petroleum, chemical, natural gas, power plants, metallurgy, national defense research and other fields
●Size:Depending on specific application requirements and design specifications
●Finish:Polished surface or sand blasting surface.
KF High Vacuum Ball Valves,3-Way Manual Ball valves for Vacuum System Wholesale China Specifications
|
Product Name
|
KF High Vacuum Ball Valves,3-Way Manual Ball valves for Vacuum System Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF25,KF40,KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF High Vacuum Ball Valves,3-Way Manual Ball valves for Vacuum System Wholesale China Unit:mm
| Size | Material | A/mm | B/mm | C/mm |
| KF25 (1'') | SS304 | 110 | 50 | 55 |
| KF40 (1 1/2"') | SS304 | 160 | 68 | 80 |
| KF50 (2'') | SS304 | 180 | 73 | 90 |
Special Sizes Available Upon Request.
