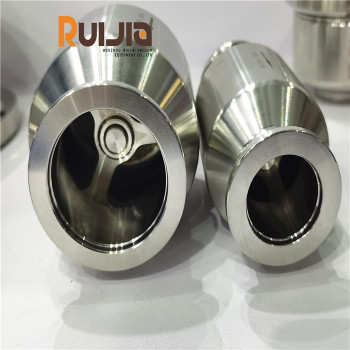

KF Vacuum Check Valves Stainless Steel Valves SS304/SS316L Wholesale China
group nameVacuum Check Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 06 Nov 2024 13:32:22 GMT
Paramtents
Size KF16,KF25,KF40,KF50.
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Helium Leak Test 1×10 -9 Pa・m³/sec or less
Packging & Delivery
Min Order1 piece
Briefing
KF Vacuum Check valves also known as one-way valve, or return valve, is an automatic valve that works by relying on the flow of the medium itself and the weight of the valve disc to close the valve and block the backflow of the medium.
Detailed
KF Vacuum Check Valves Stainless Steel Valves SS304/SS316L Wholesale China feature
●Application:Including but not limited to diversion and merging or flow direction switching devices used as media in pipeline systems such as coal chemical, petrochemical, rubber, paper, pharmaceutical, etc.
●Size:Depending on specific application requirements and design specifications
●Testing:Sealing performance testing, pressure resistance testing, and material compatibility testing are conducted to ensure the reliability and safety of valves under extreme conditions
KF Vacuum Check Valves Stainless Steel Valves SS304/SS316L Wholesale China specifications
|
Product Name
|
KF Vacuum Check Valves Stainless Steel Valves SS304/SS316L Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF16,KF25,KF40,KF50. | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Vacuum Check Valves Stainless Steel Valves SS304/SS316L Wholesale China Unit:mm
| Size | Material | A/mm | B/mm | C/mm | L/mm | N.W./kg |
| KF16 | SS304 | 30 | 17.2 | 16 | 92 | 0.32 |
| KF25 | SS304 | 40 | 26.2 | 25 | 93 | 0.53 |
| KF40 | SS304 | 55 | 41.2 | 40 | 93 | 0.86 |
| KF50 | SS304 | 75 | 52.2 | 50 | 105 | 1.37 |
Special Sizes Available Upon Request.
