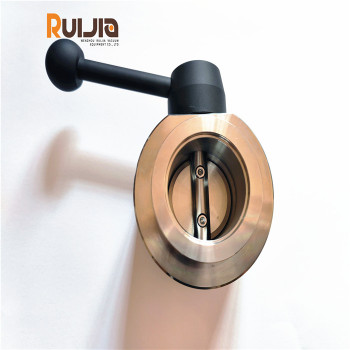

KF Vacuum Manual Butterfly Valves,Stainless Steel 316L Butterfly Valves Wholesale China
group nameVacuum Butterfly Valves
-
Min Order1 piece
brand nameRUIJIA VACUUM COMPONENTS WHOLESALE MANUFACTURER
payment methodL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
-
update timeWed, 06 Nov 2024 14:56:02 GMT
Paramtents
Size KF25,KF40,KF50
Material SS304, SS316L
Seal material Viton,Silicone,Buna-N seal
Temperature -200~800℃
Working Pressure Vacuum~atmosphere pressure
Packging & Delivery
Min Order1 piece
Briefing
Vacuum Valves,KF Butterfly Valves,Helium Leak Test:1×10 -9 Pa?m3/sec or less,Working Pressure:Vacuum~atmosphere pressure.Temperature:-200~800℃.
Detailed
KF Vacuum Manual Butterfly Valves,Stainless Steel 316L Butterfly Valves Wholesale China Feature
●Application:Used for fluid interception, regulation, and flow control, meeting fluid control requirements under various working conditions
●Size:the size and specifications of butterfly valves include nominal diameter, external dimensions, flange standards, gas source pressure, applicable range, leakage rate, etc.
●KF flange butterfly valve Type:manual Type/Pneumatic type/Electric Actuator type,we can provide according to the requirement.
KF Vacuum Manual Butterfly Valves,Stainless Steel 316L Butterfly Valves Wholesale China Specifications
|
Product Name
|
KF Vacuum Manual Butterfly Valves,Stainless Steel 316L Butterfly Valves Wholesale China
|
||
Brand | RUIJIA | ||
Size | KF25,KF40,KF50 | ||
Material | SS304, SS316L | ||
Seal material | Viton,Silicone,Buna-N seal | ||
Standard | KF Standard | ||
Temperature | -200~800 | ||
Working Pressure | Vacuum~atmosphere pressure | ||
|
Helium Leak Test
|
1×10 -9 Pa・m³/sec or less
|
||
|
Packing
|
sealed plastic bag with a protective plastic cap.
|
||
|
Vacuum Valve types
|
Vacuum ball valve,Vacuum Electric ball valve,Vacuum Pneumatic Actuated ball Valve, Vacuum butterfly valve manual/pneumatic/Electric,Vacuum Angle Valve,Vacuum Manual /Pneumatic /Electric Neutral Plate Valve
|
||
Product parameters
KF Vacuum Manual Butterfly Valves,Stainless Steel 316L Butterfly Valves Wholesale China Unit:mm
| Model for 304 | Size | D/mm | D1/mm | A/mm | H/mm | L1/mm | L2/mm |
| K25NN | KF25 | 40 | 26.2 | 30 | 60 | 50 | 62 |
| K40NN | KF40 | 55 | 41.2 | 35 | 78 | 65 | 85 |
| K50NN | KF50 | 75 | 52.2 | 45 | 105 | 85 | 110 |
Pneumatic KF Flange Butterfly Valve with Solenoid, Double Acting Unit:mm
| Model for 304 | Size | A/mm | L1/mm | L2/mm | L/mm | H/mm |
| K251N | KF25 | 30 | 50 | 90 | 152 | 160 |
| K401N | KF40 | 35 | 65 | 90 | 152 | 170 |
| K501N | KF50 | 45 | 85 | 90 | 152 | 185 |
Electric Actuator KF Flange Butterfly Valve Unit:mm
| Model for 304 | Size | A/mm | L1/mm | L2/mm | L/mm | H/mm |
| K25NN | KF25 | 30 | 50 | 140 | 165 | 195 |
| K40NN | KF40 | 35 | 65 | 140 | 165 | 200 |
| K50NN | KF50 | 45 | 85 | 140 | 165 | 215 |
Special Sizes Available Upon Request.
